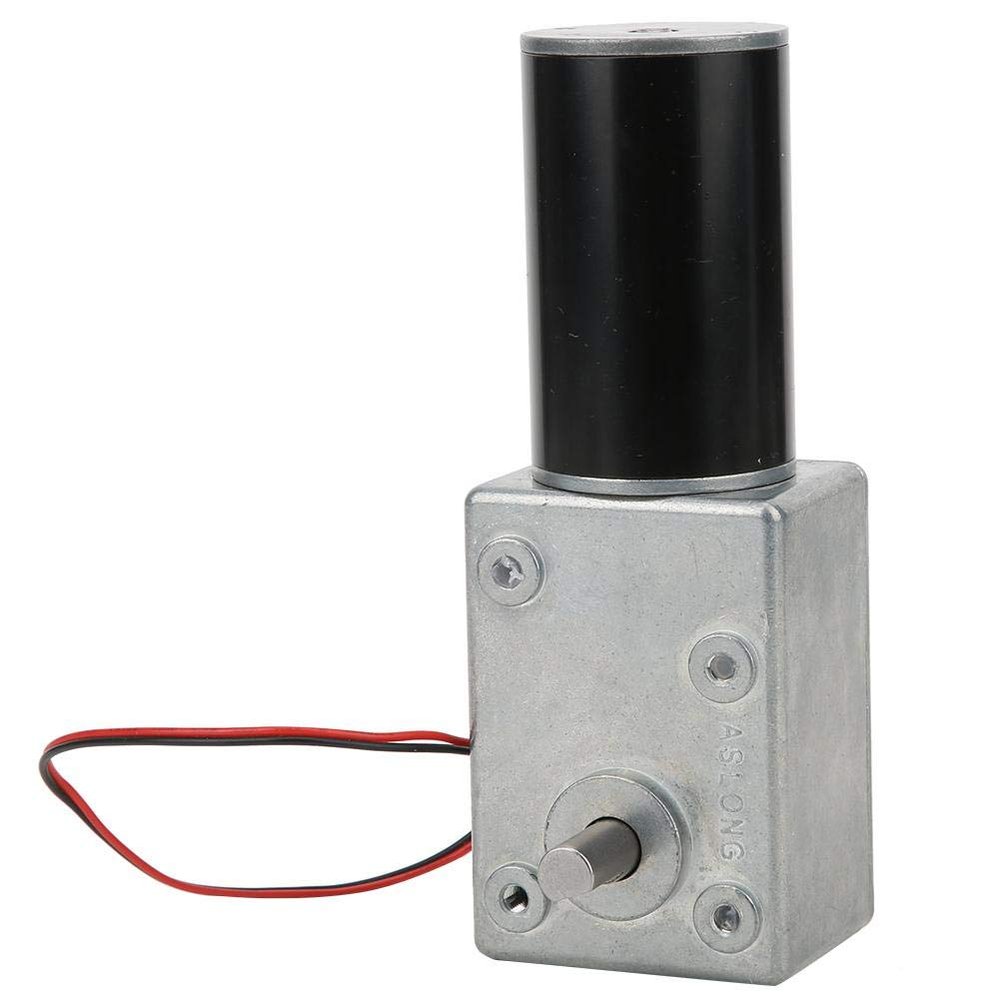

24V 30W DC Gear Motor High Turbine ElectricMotor Electric Micro Speed Reduction Engine Geared Motor for Eletrical Accessories

Description

• WITH A :Such gear motor supports low noise, low current and no spark, entitled with high performance according to strict rule.
• FUNCTION :And the mini motor can make speed ??reduction while increasing output for , reducing load inertia.
• SCOPE OF APPLICATION gear motor can be applicated in the of large power to the angle in small load.
• SAFETY :This kind of speed reduction motor supports over current and over voltage .
• PRACTICALITY :Built to strict quality control standards, gear motor's design is improved for more practicality.

Specification:
Item Type: gear motor
Parameters Table
Model: A5882-45
Voltage:
Use Range: 12-24V
Rated Value: 24V
No-Load: Speed: 36r / min
Current: 300ma
Maximum Efficiency Point:
Speed: 30r / min
Current: 1.2A
For : 100kg.cm
Power: 30W
Stalling:
Current: 5A
For : 200kg.cm
Reducer:
Reduction Ratio: 1/176
Length: Approx. 82mm / 3.2in
Weight: 1000 g / 35.3 oz(approx.)
Direction of Rotation: It is clockwise when viewed from the output shaft side.
Working Temperature and Humidity:
Temperature Range: -10 ~ + 50
Humidity Range: 30% ~ 80%.
Storage Temperature:
Temperature Range: -20 ~ + 60
Measurement Conditions:
Motor Position: Placed horizontally during measurement
Power Supply: DC power supply
No-load Speed: 36rpm.

Package List:
1 x Gear Motor
