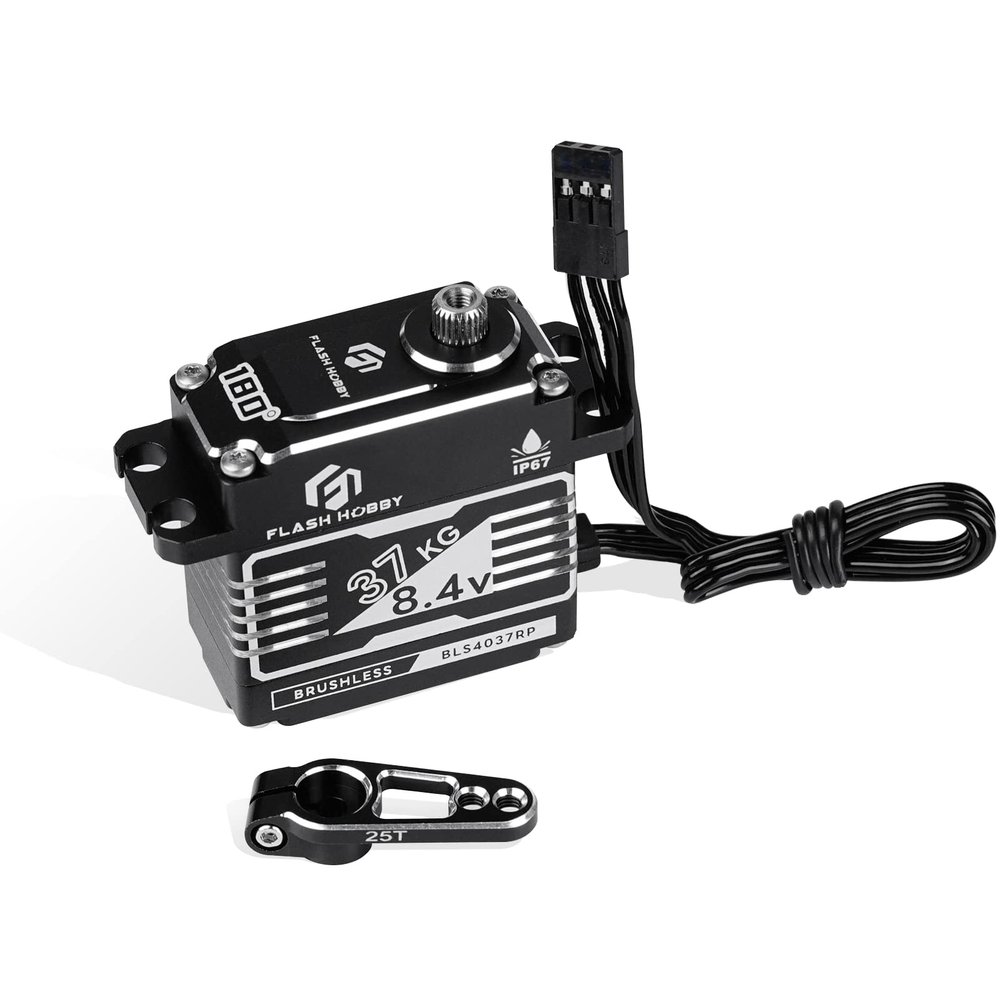

37KG Brushless Servo, 8.4V High Torque Servo, IP67 Waterproof RC Crwaler Servo Compatible with Sanwa SSR/ NB4/ Futaba for 1/8 1/10 Scale RC Crawler Cars, Trucks or Robotic Parts(180)

Description

• High Torque Servo: The maximum torque for RC crawler servo is up to 37kg/cm(514oz/in) at 8.4V, and the speed up to 0.07sec/60 at 8.4V
• IP67 Waterproof Servo: RC car servo designed with waterproof black O-ring inside, which makes the servo can work normally in the steam or a rainy day easily, creating more more happiness for you
• Metal Gear & High Quality: Equipped with metal gear, two ball bearing and full CNC AL6061 aluminum heat sink shell, makes brushless servo has advanced linearity and accuracy. Lets the servo more stable, low noise and long life
• Widely Used: High torque servo supports three modes, including Sanwa SSR, NB4 and Futaba. Compatible for 1/8 1/10 scale RC crawlers, RC cars, trucks, rollers, boats, airplane, fixed-wings, robotic parts and so on. Ideal to satisfy your various needs
• Size & Package: The size of 37KG RC servo is 1.57 x 0.79 x 1.59in(40 x 20 x 40.5mm). Package include 1 x brushless servo, 1 x 25T servo horn and a set of accessories

Specification:
Refresh Rate: Compatible 50Hz~1000Hz

Torque Speed & Voltage:
26kg-cm(361oz-in), 0.10sec/60 at 6.0V;
31kg-cm(430oz-in), 0.08sec/60 at 7.4V;
37kg-cm(514oz-in), 0.07sec/60 at 8.4V

Control System: PWM Control (1520usec in the central point)
Operation Voltage Range: DC6.0~8.4V
Operation Temperature Range: -20C~ +70C
Pulse Width: 500 to 2500 usec
Circle:one million times without load
Operation Travel: 180 5
Direction: CW
Diver type: Mos Drive
Motor Type: Brushless
Angle Sensor: Potentiometer
Single Type: Digital Control
Soft Start Function: Included
Mode Compatible: Sanwa SSR/SUR, NB4, Futaba
Waterproof Level: IP67
Dimension(mm): 40x20x40.5mm
Weight(g): 80g
Ball Bearing: 2BB
Case Material: Full Aluminum CNC
Connector Wire Length: 22AWG 260mm JR
Wire Info(Black): Negative
Wire Info(Black): Positive
Wire Info(White): S Single
