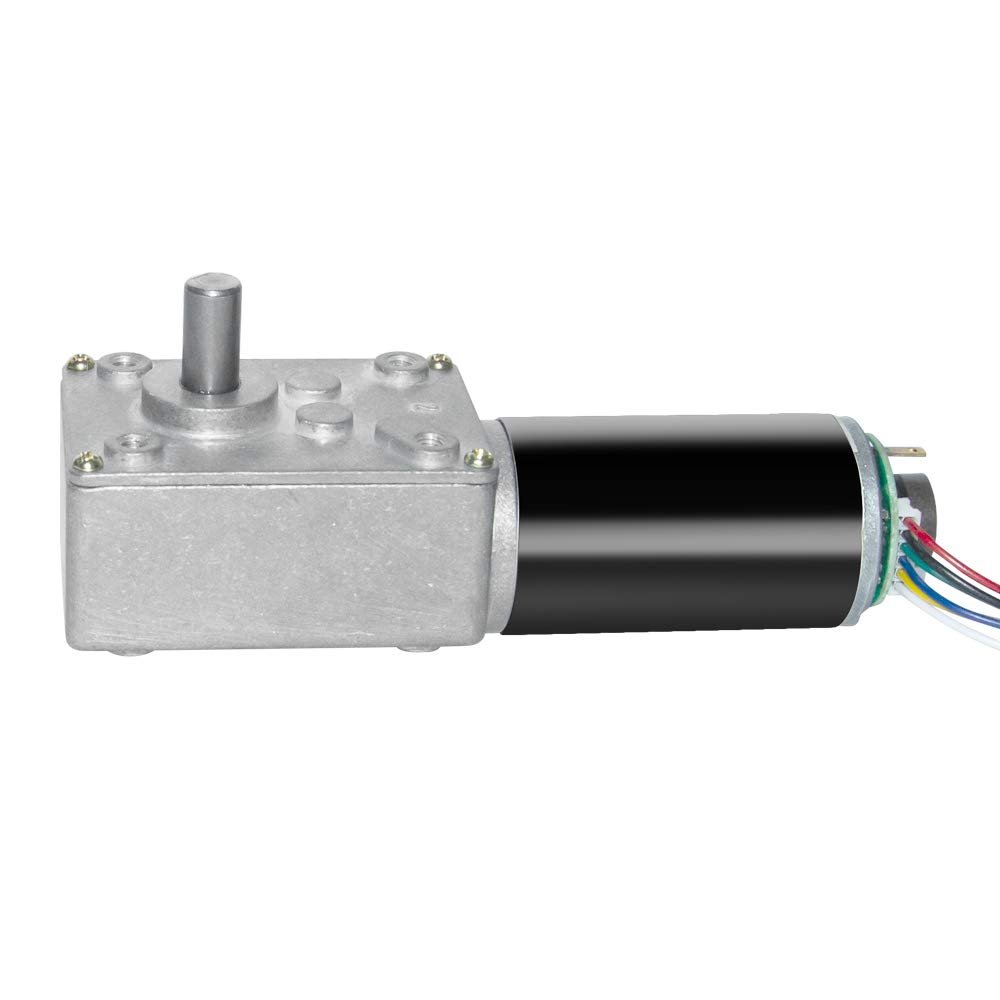

40GZ495 DC Reduction Gear With Encoder 12V With Encoder &/Cable For Robot Intelligence Appliance DC Turbo Worm Gear Motor - (Speed(RPM): 27rpm)

Description

• Speed(RPM): 27rpm
• Continuous Current(A): 0.26 to 1.4A
• Commutation: Brush
• Type: Gear Motor

Item Description:
DC Gear motor with two-channel effect encoder;
Rated Voltage: 12V;
No-Load Speed: 110RPM;
Rated Current: 1.4A(appr.);
Rated Torque: 4kg.cm;
Single Output 888 Pulses Per Revolution: Gear Reduction Ratio: 1/74, Each Loop Output Pulses: 12PPR 101*12=888PPR;
Wiring Diagram: Red - Motor power terminal (+);
Black - Motor power terminal(-);Green - Quad encoder Ground;
Blue - Quad encoder 3-24V Vcc;
Yellow - Quad encoder A signal;
White - Quad encoder B signal;
*Sweet Tips:
Be sure to keep the wiring connection correct before working and keep the motor stopped before change the CCW/CW direction, or the motor will be burned
DC Motor Body Dimensions: 31 x 57mm/ 1.22" x 2.24"(D*L);
Gear Box Dimensions: 58.1 x 40.1 x 35mm/ 2.28"x1.58"x1.37"(L*W*H);
Output Shaft Dimensions: 8 x 15mm/ 0.31" x 0.59"(D*L) with 1x 13mm/ 0.039*0.51(H*L) flat cut off; is_customized: Yes;
Application:
Suit for Projects Such as Robotics,RC Car, Intelligence Appliance, Rocker Arm Camera, and Electric Paper Cutter, Custom Servo, and 3D Printers, Engine Toy.
The rear of the motor is equipped with a channel Holzer effect encoder, AB output, single circuit per cycle pulse 12PPR,
double down the road, a total output of 48CPR. Phase 90 degrees.
The two-channel effect encoder is to sense the rotation of a magnetic disk on a rear protrusion of the motor shaft.
The quadrature encoder provides a resolution of 48counts per revolution of the motor shaft.
To compute the counts per revolution of the gearbox output, multiply the gear ratio by 48.
Notice:
1.Be sure to keep the wiring connection correct before Working;
2.Be sure to keep the motor stopped before change the C
