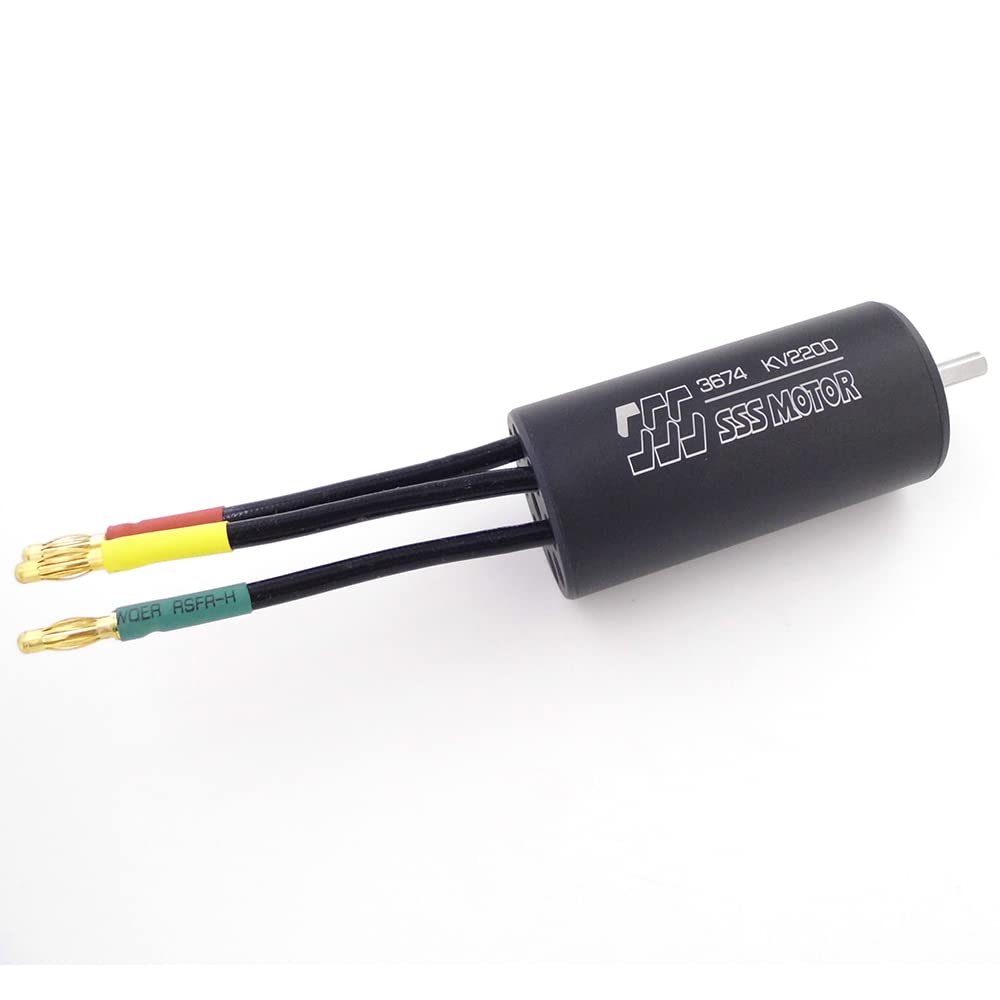

4S-6S 3674 RC Boat Brushless Motor 4-Poles Brush-Less Motor KV2200 for RC Boat Speed Mono Racing Catamaran Jet Boat

Description

• This brushless motor is designed for RC boat, RC marine, RC Yacht, RC Cruise, Speed MONO, Catamaran Racing Boat.
• Designed with 18-slots stator and 6-pole rotor,light weight and high torque.
• The rotor adopts dovetail groove design,and peripheral of rotor wears a layer of Koala to effectively prevent rotor from explosion when it is at extreme rotating.
• Max Power: 2200W
• Working Voltage: 4-6S

This brushless motor is designed for RC boat, RC marine, RC Yacht, RC Cruise, Speed MONO, Catamaran Racing Boat.
Designed with 18-slots stator and 6-pole rotor,light weight and high torque.
The rotor adopts dovetail groove design,and peripheral of rotor wears a layer of Koala to effectively prevent rotor from explosion when it is at extreme rotating.
Made of high temperature resistance NdFeB magnet( it is up to 180), High Performance copper wire and NSK bearing.
High precision CNC aluminum alloy shell.

-- Specification & Features --

* Name: 3674 Brushless Motor
* KV Value: KV2200
* Max Current: 77A
* Max Voltage: 28V
* Max Power: 2200w
* No Load Current: 2.0A
* Max RPM: 60K
* Shaft Diameter: 5mm
* Size: 36mm*74mm
* Weight: 310g
* Pole: 4P
* Shaft Diameter: 5mm ( D shape )
* Output Shaft Length: 18mm
* Mounting Hole distance: 25mm
* Mounting Hole Thread: M3

-- Item Contains --

1 piece of 3674 4-Poles Brushless Motor
