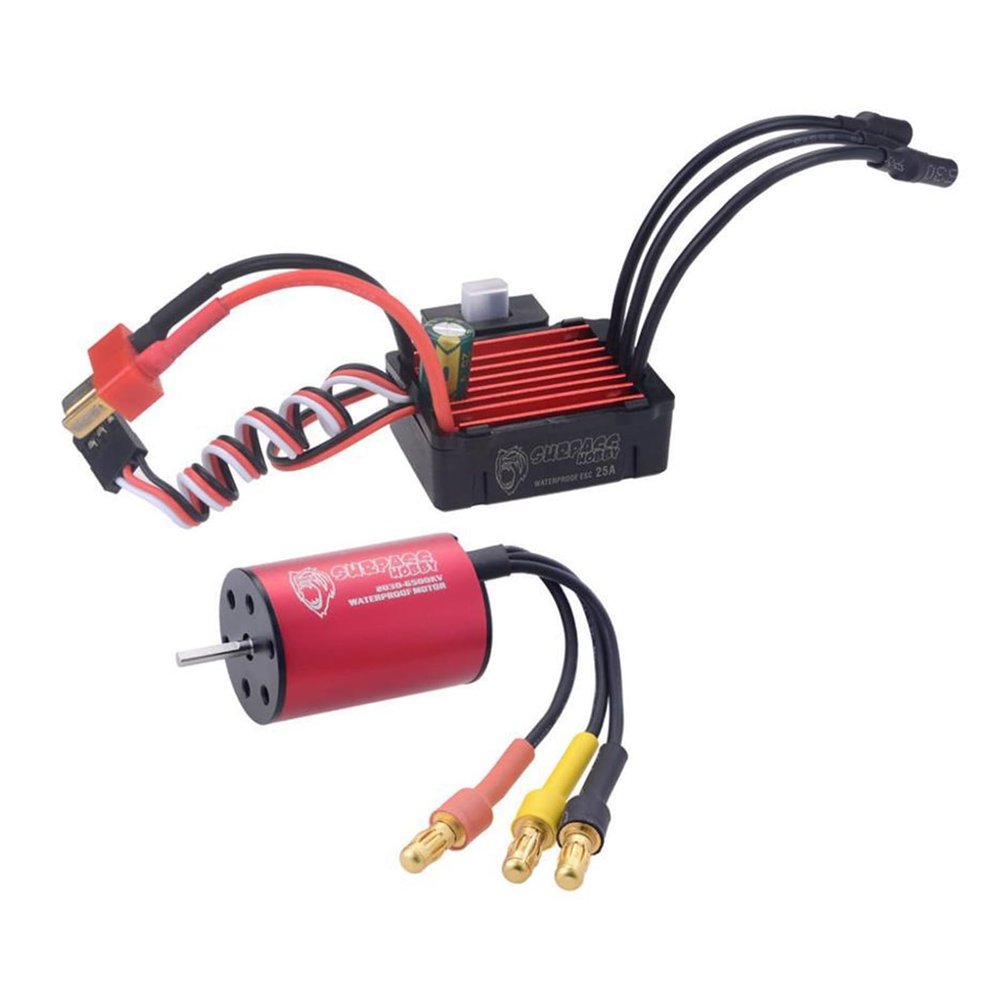

7.4V 2S 2030 6500KV Waterproof Brushless Motor with 25A Brushless ESC Combo Set for 1/20 1/18 Mini RC Car

Description

• High-speed ABEC5 ultra-durable sealed bearing with low friction, low noise, high precision and long-lasting use.
• 3.5mm gold plated joint, 2.0mm shaft, suitable for 1/18, 1/20 brushless car. Use M2.5*6 screws for a variety of mounting styles.
• High-balanced explosion-proof rotor, high smoothness, high accuracy and high speed, dynamic balance control, and later removable and replaceable.
• Motor with precision waterproof design for maximum power conversion
• Working with 7.4V (2S LIPO or 6 cells NiMH) Battery

Motor Features:
1. 4 Poles 6 slots Hi-torque motor design
2. CNC machined 6061 T6 billet aluminum heatsink can
3. High purity copper windings maximizes efficiency
4. High RPM ABEC5 oversized bearings
5. Universal fit, fits all 1/20, 1/18 brushless cars-multi-mounting system for M2.5 screws
6. Precision balanced rotor, smoothness for best reliability and maximum RPM
7. Stator - super thin 0.35mm laminations
8. Precision engineered for maximum energy conversion
Motor Spec:
Model: 2030
KV(RPM/Volt): 6500
Max Watts: 120W
Max Voltage: <8.4V
Max Amps: 14A
Poles: 4
IO: 1.4A
Resistance: 0.0493
Max RPM: 50000
Shaft Diameter: 2.0mm
Length of extend shaft: 10mm
Connector: 3.5mm
Weight: 53g

ESC Spec:
Model: 25A
Cont./Burst Current 25A/100A
For Sensorless Brushless Motor
For 2S Lipo or 6 cells NiMH:
1.On-road: 24XX-size or smaller motor with the KV<7200
2.Off-road/Buggy/Monster: 24XX-size or smaller motor with the KV<4800
Suitable for 1/20, 1/18, 1/16 rc cars.
Resistance: 0.0014ohm
Battery: 2S Lipo / 4-6 cells NiMH
BEC Output: 5.0V/2A(analog mode)
Dimensions/Weight: 40x32x15mm/33g
