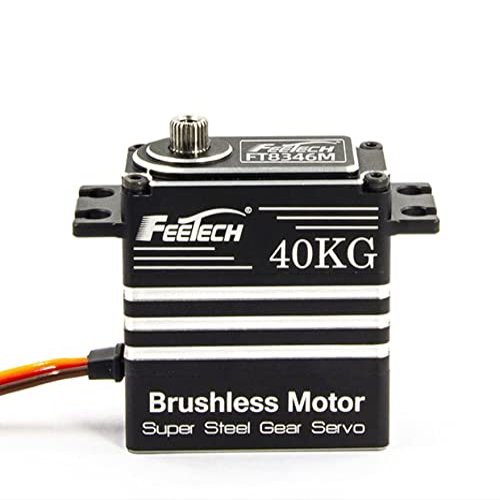

7.4V 40kg Large Torque FT8346M Digital 360 Magnetic Servo Coreless Motor Robo DIY Arduin Servo

Description

• 7.4V 40kg Large Torque FT8346M Digital 360 Magnetic Servo Coreless Motor Robo DIY Arduin Servo

Fearture
Standard digital servo, with 40kg.cm ,high torque more powerfull.
Full steel gears,improve servo's accuracy and extend its service time.
Internal Hall effect position sensor, Controllable angle range from 0 to 360 degrees, for Robotic, RC,Industry and others large angle control requirements.
Product Description
7.4V 40kg.cm Large Torque FT8346M digital 360 magnetic servo coreless motor robo DIY arduin servo
Size: 40X20X43.05mm
Limit Angle:No limit
Case material:Aluminum
Gear material:Steel
Bearing type:Ball bearings
The Weight:91.5 1g
Horn Type:25T/5.9mm
Gear Ratio:1/378
Back Lash:0.5
The rocker phantom:0
The rocker screw :M3X6
Motor:Coreless Motor
Command Signal:Pulse width modification
Control System Type:Digital comparator
Operating Travel:360(at 5002500sec)
Left&Right Travelling Angledeviation: 1
Centering Deviation:1
Neutral Position:1500 sec
Dead Band Width:4 sec
Rotating Direction:Counterclockwise(15002000 sec)
Pulse Width Range:5002500 sec
Signal Period:20ms
Pulse Width:500us-2500us
Signal high Voltage:2V-5V
Signal Low Voltage:0.0V-0.45V
