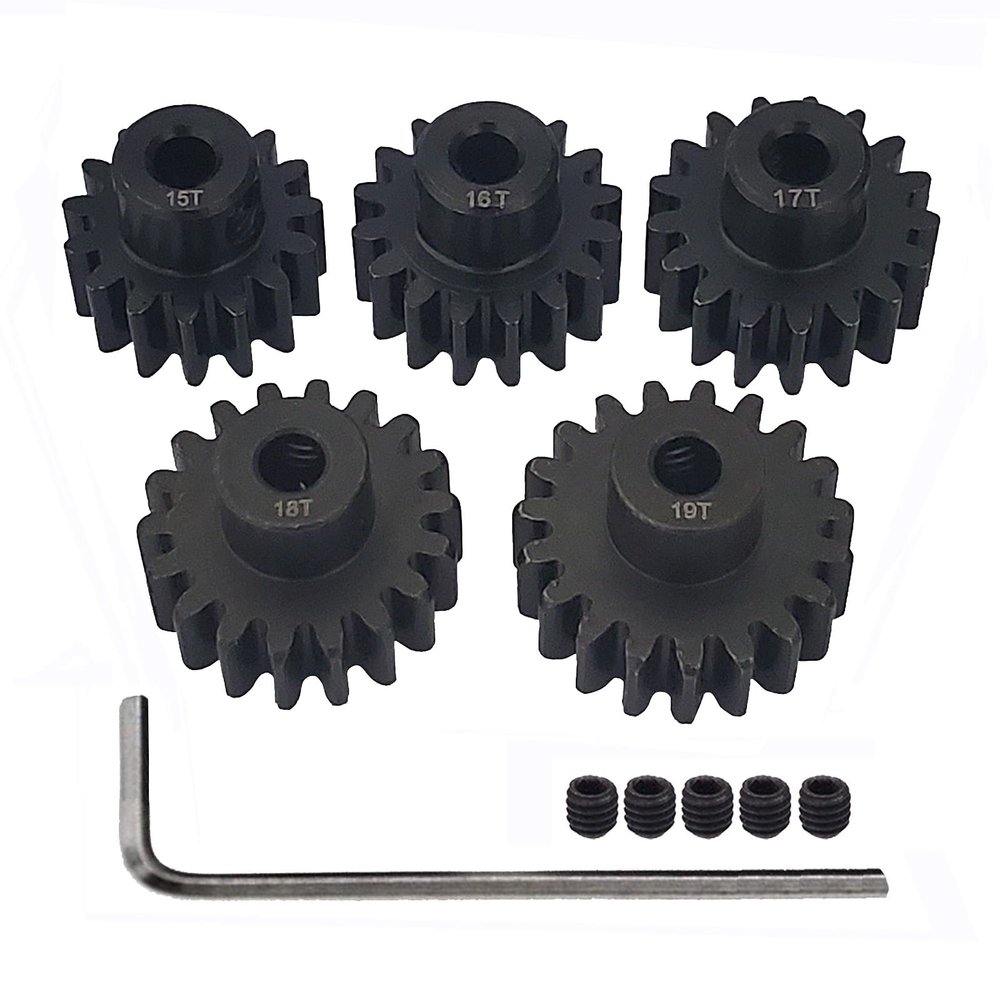

AMOGOT Metal Steel 32P Pinion Gear 3.175mm Shaft 15T 16T 17T 18T 19T with Hex Key for RC Brushless Brush Motor RC Car Upgrade Part B

Description

• Compatible with3.175mm Shaft Size Motors(Compatible With 550 540 3650 etc motor) make sure your RC motor shaft have the same diameter
• Spec32 Pitch pinion gear 3.175mm 15T 16T 17T 18T 19T
• MaterialMade of Hardened Steel to increased wear resistance and improve fatigue life,make them roll smoothly, it will work with the steel spur gear. did not work with plastic or aluminum spur gear
• SizeHeight:11mm/0.43inch Comes with screws for each pinion gear
• Package32P 3.175mm shaft 15T 16T 17T 18T 19T pinion gear and a hex key

Description:

Metal steel to increased wear resistance and improve fatigue life
Nitrided to enhanced hardness corrosion resistance
Tooth count: 15T 16T 17T 18T 19T
Tooth pitch: 32 pitch
Height: 11mm
For shaft: 3.175mm

Package include:
1 X 32p 15T pinion gear
1 X 32p 16T pinion gear
1 X 32p 17T pinion gear
1 X 32p 18T pinion gear
1 X 32p 19T pinion gear
5 X Screws
1 X Hex Key

Make sure you thread lock the grub screw. They are hard to find when they fall out.
Larger gears will result in higher speeds while smaller gears provide more torque.
For quicker acceleration go for a smaller pinion gear (with fewer teeth) and larger spur gear (with more teeth).
Your car will accelerate off the mark very quickly with more torque, and you'll also benefit from cooler running temperatures, extending the life of your motor and ESC.

How to install the pinion gear:
You will probably need to loosen the motor a bit, in order to fit the pinion gear on. Make sure you lock it in place on the flat portion of the motor shaft.
When you are tightening it back up, make sure you leave about a gap between the pinion gear and the spur gear. That gap will be very small. It should be about the thickness of a piece of paper.
