APEFIT Drone Accessories for BETAFPV F4 1S 5A for AIO Brushless Flight Controller Built-in for SPI ExpressLRS for ELRS 2.4G Receiver for FPV Racing Drone Meteor 65/75 Replaceable

Description

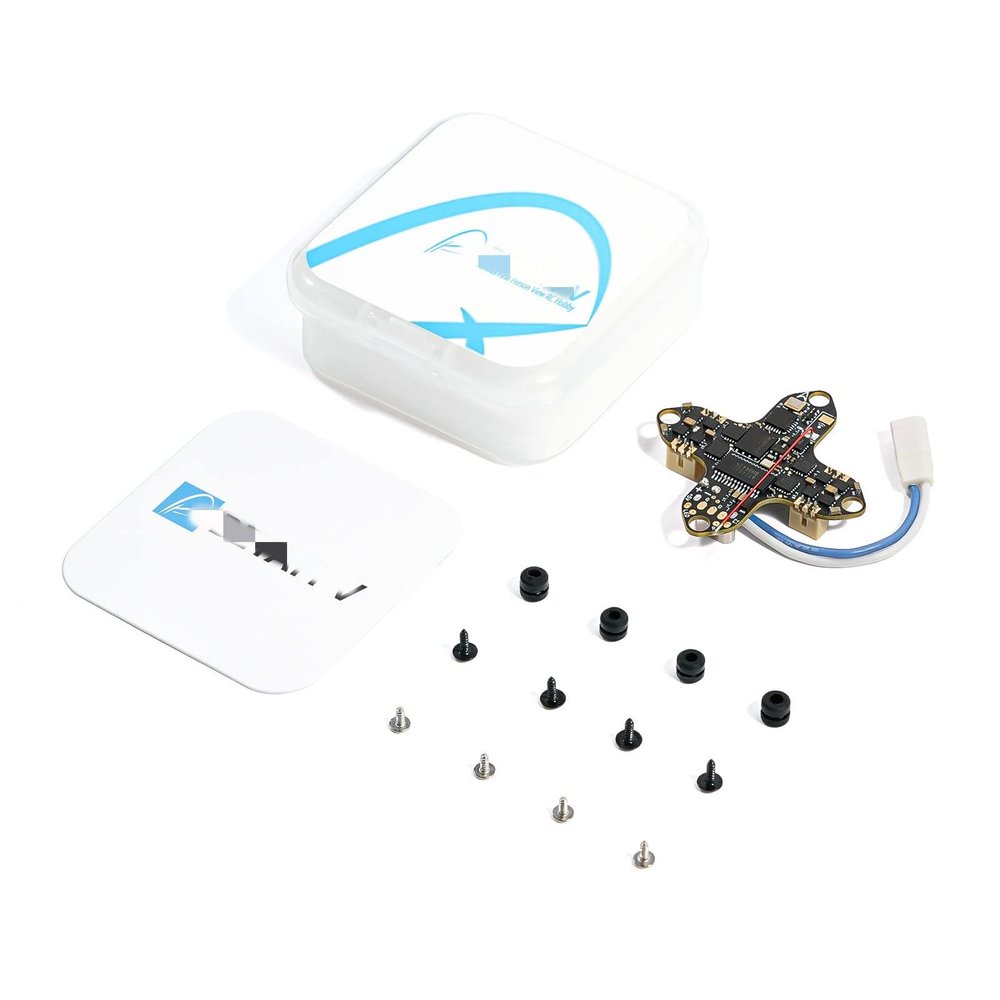

• The ultralight F4 1S 5A AIO Brushless Flight Controller is back in stock with new and upgraded features.
• Compared to the previous version, the new board uses Serial ExpressLRS 2.4G instead of SPI ELRS 2.4G so that it can support ExpressLRS V3.0 and also has a Frsky RX version to choose from.
• We updated the FC with high-quality BMI270 gyro and BB51 ESC hardware. In addition, this new board supports the Betaflight Blackbox function.
• Made of high-quality material, and less burrs and good texture. And with better wear resistance, the life time can be longer.
• Made of high-quality electronic components, the electronic performance is more stable.

For BETAFPV F4 1S 5A For AIO Brushless Flight Controller Built-in For SPI ExpressLRS For ELRS 2.4G Receiver for FPV Racing Drone Meteor 65 /75

Bullet Point

Come with a Serial ExpressLRS 2.4G receiver, which can be updated via Wi-Fi or Betaflight serial passthrough. It is convenient for pilots to flash any version of ELRS RX firmware and especially can flash For ExpressLRS V3.0 without updating flight controller firmware.

For SPI For Frsky version board reserves an SBUS port and a UART port, which is available for the SBUS protocol receiver or other external receivers.

Built-in an 8MB flash memory chip dedicated to Blackbox logging. Its an extremely powerful tool for tuning and troubleshooting an FPV drone.

Integrated motor pin connectors, it is easy to install motors without soldering work.

Particular design with only 3.6g ultralight weight, reasonable layout, and easy to build. With a 26*26mm mounting hole size, it is fully compatible with the whoop frame in the current market.

Specification of FC

CPU: STM32F411CEU6 (100MHZ)

Six-Axis: BMI270

Built-in Receiver: Serial ExpressLRS 2.4G/SPI CC2500 (For Frsky)

Receiver antenna: Line antenna

FC Size: 30*30mm

Mounting Hole Size: 26*26mm

Firmware version: betaflight_4.3.1_BETAFPVF411 (ELRS)/betaflight_4.2.11_BETAFPVF411RX (For Frsky)

OSD: Built-in BetaFlight OSD

Blackbox: 8MB

Recommend VTX: >=200mW, like For BETAFPV M03 350mW VTX or For TBS Unify VTX

Power Cable: 55mm, with BT2.0 connector

Weight: 3.6g(ELRS)/3.7g(For Frsky), without power cable and BT2.0 connector

Specification of ESC

Power supply: 1S

Current: 5A continuous and peak 6A (3 seconds)

ESC firmware: A_X_5_.HEX for BB51 BLHeli_S hardware

Signal Support: For D-shot150, For D-shot300, For D-shot600, For Oneshot125, For Multishot, For PWM

F
