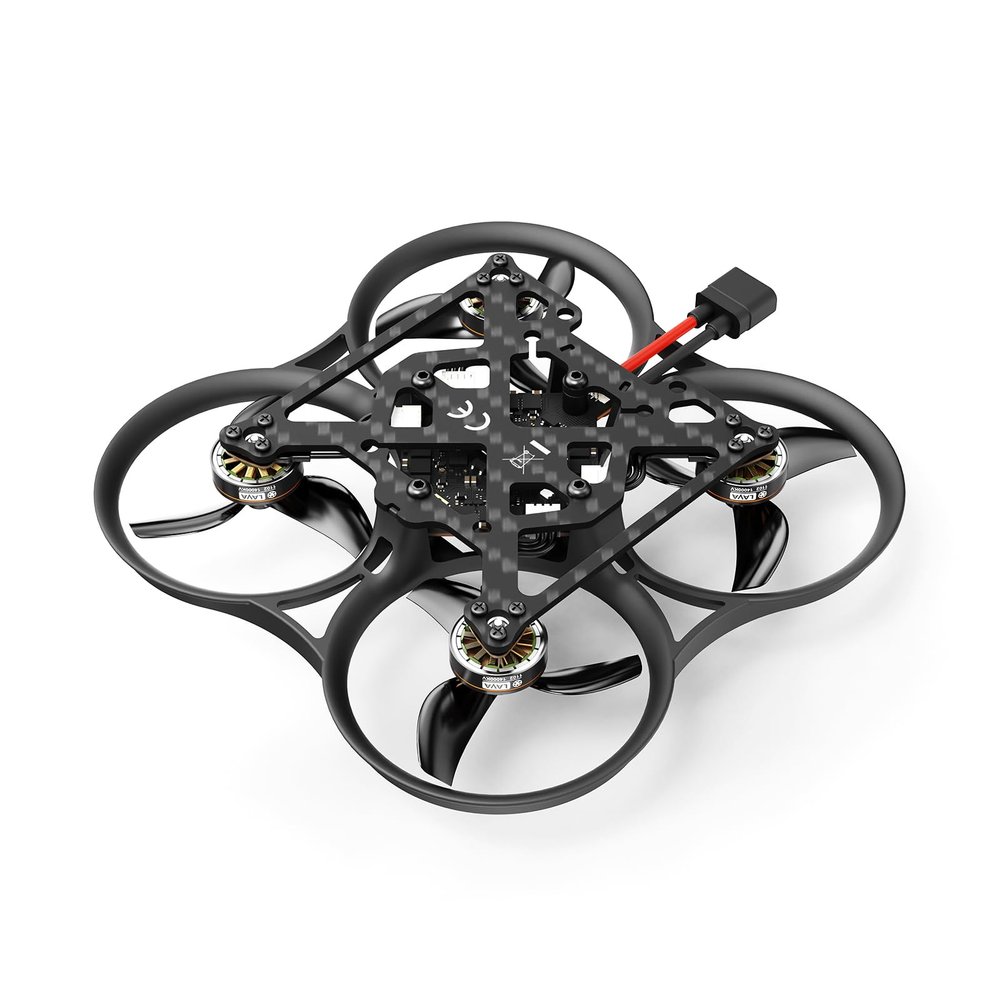

BETAFPV Pavo Pico II Brushless Whoop Quadcopter Ultra-Light 2S Cinewhoop with HD VTX Bracket II for O4/O4 Pro VTX, F4 2S 20A AIO FC, 1102 14000KV Motor, for Cruising Indoors Outdoors - PNP ELRS

Description

• Ultralight Cinewhoop: The Pavo Pico II is the ultimate compact cinewhoop, completely redesigned for the O4 system. Features a new rigid frame with guided mounting for easy assembly, the innovative Bracket II for O4 with 4 shock absorbers to eliminate jello, and a new carbon plate that fits both the O4 and O4 Pro air units. Powered by upgraded LAVA 1102 motors for 10% more power and efficiency, all in a lightweight 39.1g design (without camera&battery)
• HD VTX Bracket II for O4/O4 Pro: Ensures perfect jello-free video. Unlike the first-gen model's separate, complex assembly prone to instability, Bracket II features a fully integrated vibration-damping system. The camera is securely mounted with 4 screws for rigidity, while 4 soft-mounted shock-absorbing balls isolate vibrations. This streamlined design delivers superior damping, long-term stability, and effortless setup, letting you capture flawless footage every time
• Pavo Pico II Frame: Pavo Pico II frame's embedded nuts allow assembly with only four screws for a secure, durable build. Advanced molding and three guided points guarantee perfect alignment and rigidity. The new universal carbon plate supports both O4 and O4 Pro, ensuring adaptability. Effortlessly achieve peak performance with pre-tuned PID profiles for each system, selectable via OSD for optimal flight
• Powerful Propulsion System: Experience a leap in performance with the all-new LAVA 1102 14000KV motors and custom-engineered Gemfan 45mm 3 blade props. This optimized combination delivers a massive 10% increase in propulsion for explosive acceleration, while also achieving remarkable efficiency for extended flight times up to 6:30 minutes
• F4 2-3S 20A FC: Features an F4 2-3S 20A AIO Flight Controller specifically designed for HD VTX. Equipped with a dual BEC solution, it provides stable power outputs of 9V 2A for the O4 system and 5V 3A for external devices. The 20A ESC ensures agile and dynamic flight performance, while dedicated HD VTX 6-Pin connectors and a conveniently positioned USB ports simplify installation and maintenance. This FC brings exceptional reliability and professional-grade functionality for Pavo Pico II

Cautions:
1. Please correctly connect the battery's positive and negative terminals to prevent drone damage.
2. PNP versions does NOT include the VTX system and must be purchased separately.

BETAFPV Pavo Pico II Brushless Whoop Quadcopter Ultra-Light 2S Cinewhoop with HD VTX Bracket II for O4/O4 Pro VTX, F4 2S 20A AIO FC, 1102 14000KV Motor, for Cruising Indoors Outdoors - PNP ELRS

Specifications
Items: Pavo Pico II Brushless Whoop Quadcopter
Color: Black
Wheelbase: 80mm
Frame: Pavo Pico II Brushless Whoop Frame
Battery: LAVA 2S 550mAh, LAVA 2S 450mAh(not included)
FC: F4 2-3S 20A AIO FC
Props: GF 45mm 3B Prop
Motor: LAVA 1102 | 14000KV
Battery Connector: XT30
Battery Slot: 16*12.7mm
Flight Time: 6:30 min (O4 Version with LAVA 2S 550mAh battery, not included.)
Weight: 39.1g (PNP Version)
RX Version: Serial ELRS

Package: (Note: This Version does not include VTX in the package.)
1 * Pavo Pico II Brushless Whoop Quadcopter (PNP Version)
1 * Top Plate for Bracket II for O4 Air Unit
1 * Bottom Plate for Bracket II for O4 Air Unit
1 * Bracket for O4 Air Unit Pro
4 * GF 45mm 3-Blade Propellers
1 * Type-C to SH1.0 Adapter
1 * SH1.0-4Pin Adapter Cable
6 * Shock-absorbing Balls for HD VTX Bracket for O4 Air Unit Pro(6.6mm)
6 * Shock-absorbing Balls for HD VTX Bracket II for O4 Air Unit(8.8mm)
6 * Shock-absorbing Pads for HD VTX Bracket II for O4 Air Unit(1.5mm)
6 * M2*10 Cylindrical Socket Head Cap Screws
6 * M2*4 Flat Head Socket Cap Screws
6 * M2*4 Socket Head Cap Self Tapping Screws
8 * M1.4*6 Phillips Flat Washer Head Tapping Screws
2 * 5.8G VTX Antenna
1 * 5.8G VTX Antenna Mount
1 * Phillips Screwdriver
1 * H1.5 Hex Screwdriver
