Cheetah 21.5T 1600KV Brushless Motor+1/10 60A Sensored ESC Program Card Combo Power System for RC Car SK-300058-05

Description

• Cheetah 21.5T 1600KV Brushless Motor+1/10 60A Sensored ESC Program Card Combo Power System For RC Car SK-300058-05

Cheetah Cheetah 21.5T 1600KV/ Brushless Motor+1/10 60A Sensored ESC Program Card Combo Power System for 1/10 1/12 RC Car

Specifications of Motor:
Brand:
KV: 1600KV
Power supply: 2-3S LiPo battery
Watts: 150W
Turns: 21.5T
Resistance: 0.0875 Ohm
Outer diameter: 36mm
Length: 53mm
Rotor: 12.5mm
Shaft diameter: 3.175mm
Weight:165g

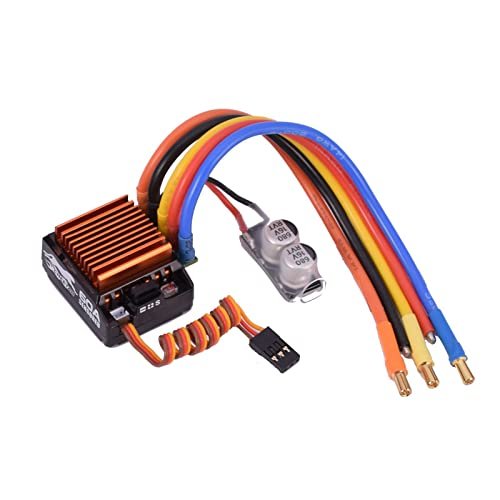

Specifications of ESC:
Brand:
Motor compatible:Brushless sensor/sensorless ESC
Car compatible:1/10 and 1/12 Buggy and Touring Car
Power supply: 2-3S LiPo battery, 4-9S NiMh battery
BEC output: 6V/3A
Constant current: 60A
Burst current: 380A
Resistance: 0.0007 Ohm
Fan: 8V/0.2A, Max 12.6V
Item size: 38 * 30 * 20mm (without cable)
Item weight: 67g (with cable)

Specifications of Program Card:
Brand:
Cut off voltage: AutoLiPo, None, 5V, 6V, 9V, 12V
Auto-LiPo cut off volts / cell: 3.0V, 3.1V, 3.2V, 3.3V
Drag brake: 0%, 10%, 20%, 30%
Brakes strength: 0%, 20%, 40%, 60%, 80%, 100%
Punch strength: 0%, 10%, 20%, 30%
Dead band: small, normal, large
Reverse type: Proportional Rev.Lock Out, Proportional w/o Reverse, FWD to Brake and Reverse
Motor timing (sensored only): none (0), low (10), middle (20),high (30)
ESC type: sensored
Motor direction: normal, reverse
Item size: 80 * 52 * 6mm
Item weight: 19g

Features of Motor:
Hight RPM precision bearings
High temperature neodymium magnet
Sensor-based for excellent torque and low-speed drivability
Compatible with any Sensored/Sensorless ESC
