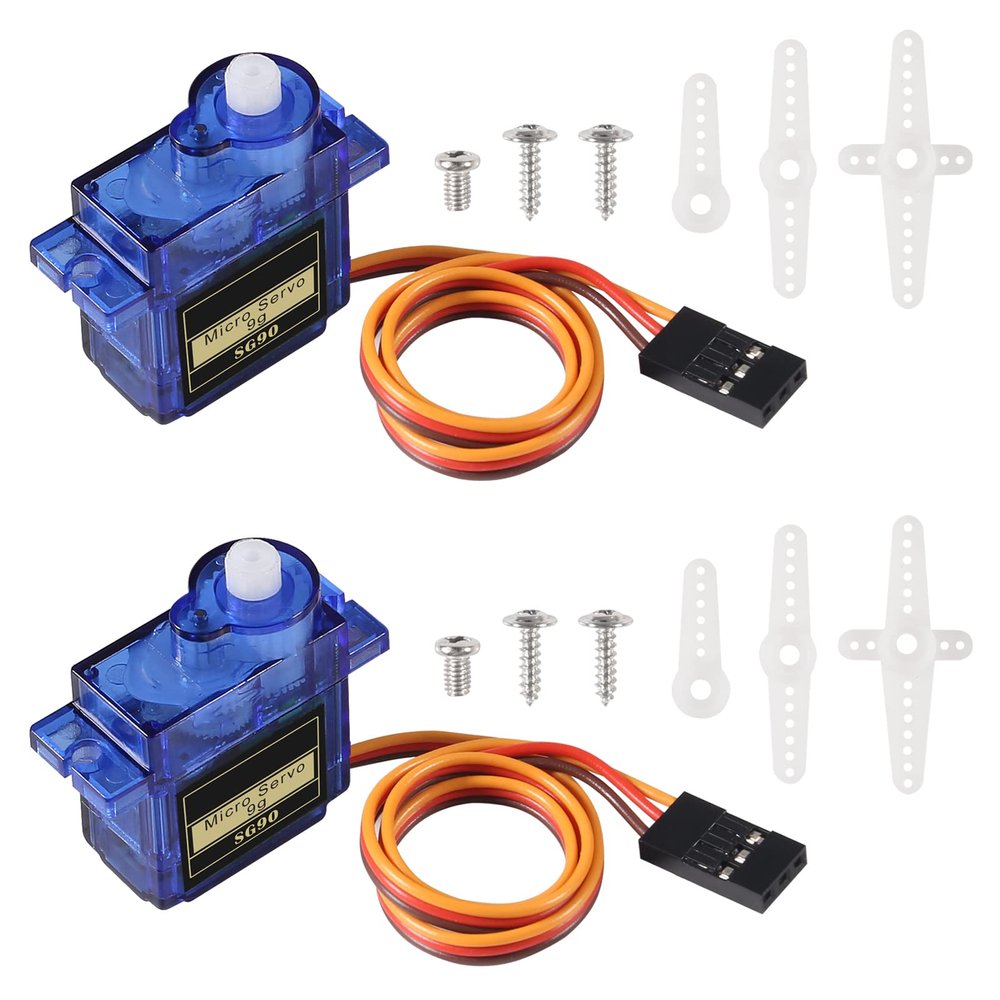

Diitao 2PCS SG90 9g Servo Motor Micro Servo Metal Geared Motor Kit Mini Servos for RC Robot Helicopter Airplane Controls Car Boat with Cable (SG90)

Description

• Interface Type --- Compatible with JR & Futaba interface;compatible for Arduino with high efficiency.
• No Load Running Speed --- 0.090.01 sec/60 at 4.8V Rotary Angle: 120,Stall Torque (4.8V): 17.5oz /in (1kg/cm),dead band width: 7usec ,analog controller Operating voltage: 4.8V6.0V.
• 3 Wire Interfaces--- The connections as follows: Red wire-5V, Brown Wire-Ground, Yellow wire-digital pin 9.
• Widely Used --- SG90 9G micro servo motor can be used for remote control helicopters, micro robot, robot arm and boats. Fit for aLL kinds of R/C Toys and electronics DIY.
• NOTE --- The starting current of the analog servo motor should be over 1A;

Specification
Model: SG90
Weight: 9g
Stall torque: 1.8kg/cm
Operating speed: 0.1sec/60degree
Operating voltage: 4.8V
Temperature range:0 ~ +55
Dead band width: 10us

Maximum rotation angle: 180 degrees
Gear medium: nylon
Working mode: Simulation

Circuit connection:
Yellow line (signal line)
Red line (power line)
Brown (ground)

Advantages of metal gears and gear mandrels:
Stronger force-bearing capacity, not easy to deform;
Easy to turn;
High hardness and abrasion resistant;
Longer service life;

Electrical Specification
Running current(at no load)40030mA(4.8V)50030mA(6V);
Stall torque(at locked)2.00.20kgcm(4.8V)2.20.20kgcm(6V);
Stall current(at locked)130040mA(4.8V) 160050mA(6v);
Idle current(at stopped)61mA(4.8V) 61mA(6v);
Running life(at no load)>350000 Turns(4.8V)>320000 Turns(4.8V);

Package includes
2 x SG90 9g Micro Servos
