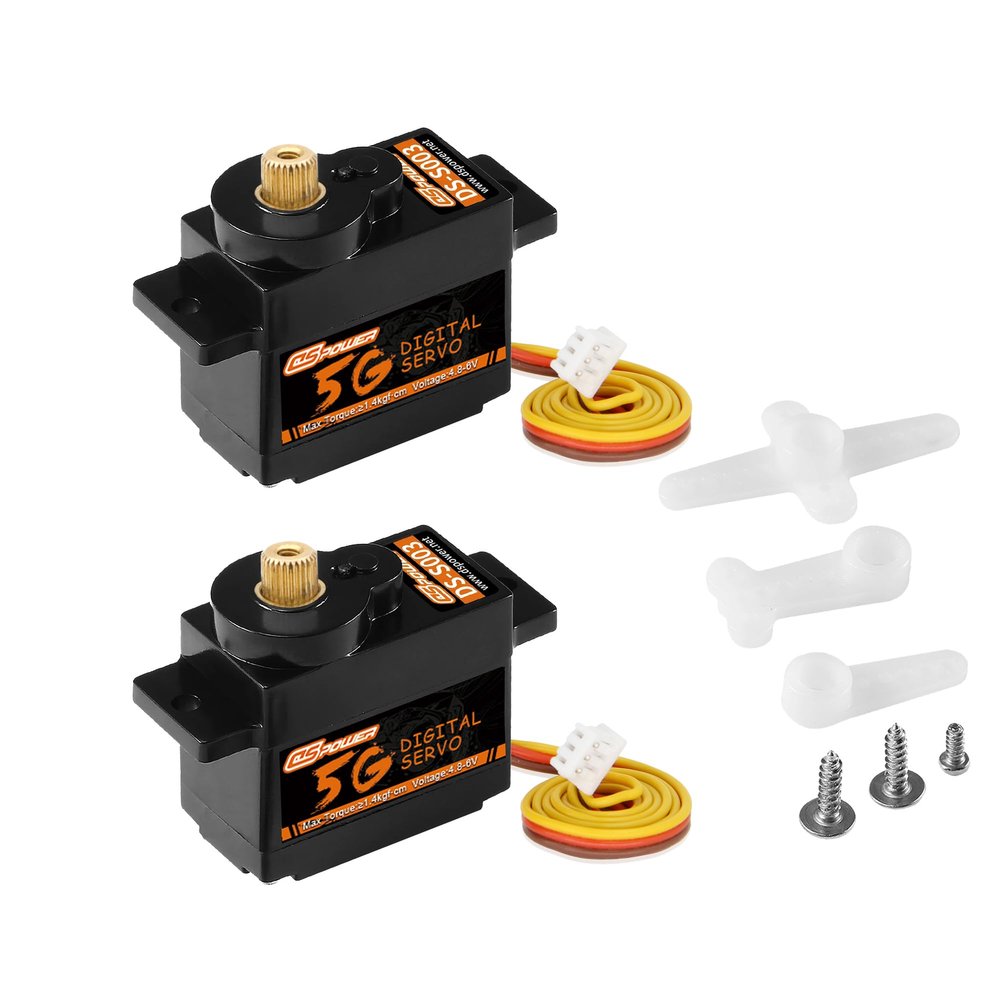

DSPOWER 2PCS 5g Micro Digital Servo, Mini Servo, Metal Gears, Coreless Motor Servos for 1/28 RC Car Airplane Fixed-Wing Robot Helicopter Planes Part (JST1.25)

Description

• Excellent Quality Workmanship:The 5G Micro Servo made with excellent plastic shell material (lightweight and fast heat dissipation) and high-precision metal gear (prevent tooth sweeping and better muting effect) has a longer service life.
• High Performance Digital Standard:The 5G Mini Servo with electronic burn protection can achieve Low Noise, Good Stability, Small Vibration, Smooth Operation, Excellent Linearity, Precision Control, Fast Response.
• Coreless Motor:5G Digital Servo equipped with coreless motor and clutch protection function, which can provide better mute effect and quick response ability for the servo, greatly improving the accuracy of your RC models, and also greatly reducing the probability of servo damage.
• Widely Use :The 5G RC Servo is suitable for micro remote control models such as RC Aircraft,RC Helicopters,RC Drones,Fixed-Wing,RC Car SCX24,Boat,Toys,etc.
• Note:In the frequency range of 500~2500us, the maximum controllable angle of the servo can be accurately achieved at 180 degrees, and the servo can achieve a control angle of 90 degrees under the control of a transmitter.

DSPOWER S003M Mini Micro Servo

Specifications:
Item name: DSpower S003M
Operating Voltage : 4.8~6.0V DC
Max. Torque : 4.8V1.2 kgf.cm ; 6.0V1.4 kgf.cm
No Load Speed : 4.8V0.08sec/60; 6.0V0.07sec/60
Stall Current:4.8V800mA;6.0V950mA
Consumption Current* (No Load):4.8V 100mA ;6.0V110mA Max.
Operating Travel Angle:9010(1000~2000s)
Dead Band Width: 1 us
Mechanical Limit Angle: 360
Communication Interface: PWM
Motor Type: Coreless motor
Case Material: ABS
Gear Set Material : Metal gear
Weight: 5g
Size: 20 11.5 21.3mm
Length of Connector cable: 2005mm (exposed without plug)

Package included: 2 * 5G Digital Servo 2 * Servo Arm Accessories
