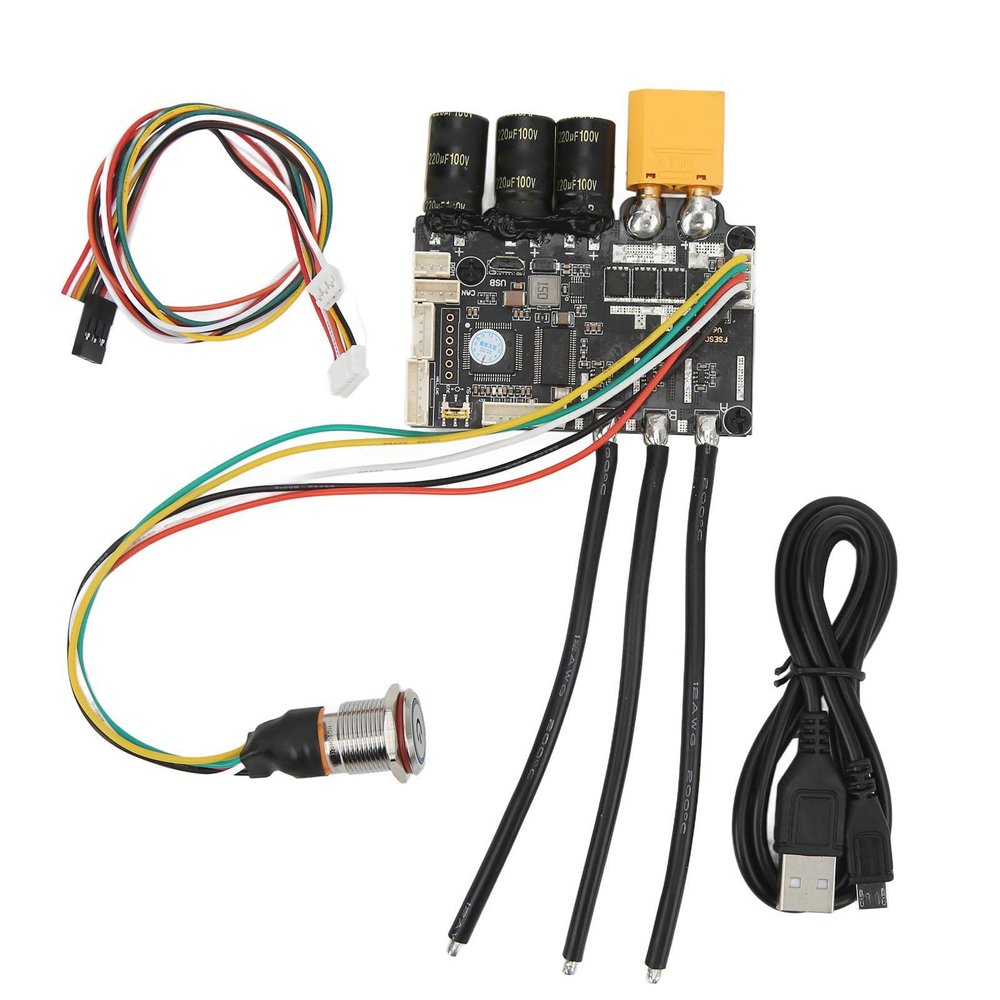

Electronic Speed Controller, EVTSCAN Electronic Speed Controller Electric Control Switch with Heat Sink 460V for Robot RC Car

Description

• Better Design: High voltage capacitors 10UF100V makes the voltage change of the MOS more stable and the efficiency better, while the two way MC52193.3YM5 and upgraded 1A output enables better power supply.
• Safer Working: With spark switch function to prevent electric spark from damaging the power contacts and electronic components of the integrated circuit.
• Wide Matching: Connects to IMU module through IIC interface, supports balance car function, also supports MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160 and other unit modules.
• Reliable Work: Using immersion gold thickening process, 6 layer PCB layout design as well as 30Z copper foil thickness of each layer, which can increase heat dissipation performance and over current treatment process for better overall effect.
• Quick Cooling: Combining aluminium alloy heat sink with thermal conductive silicone to enhance the heat dissipation of ESC. Also, the surface of the heat sink is anodized to prevent scratches.

Specification:
Item Type: Electronic Speed Controller
Material: PCB, aluminium alloy.
Input Voltage: 14-60V, safe for 4-12s, and the peak voltage should not exceed 60V.
Continuous Current: 70A
Instantaneous Current: 200A
ERPM: 150000
Communication Port: USB, CAN, UART.
Communication Method: PPM, ADC, NRF, UART, SPI, IIC.
Supported Sensors: ABI, HALL, AS5047, AS5048A
Motor Cable: 12AWG
Mode: DC, BLDC, FOC.
Application: For robotic arm, robot, DIY RC off road vehicle.

Package List:1 x Electronic Speed Controller1 x PPM Cable1 x 6 Pin Hall Line1 x Data Cable1 x User Manual
Note:The ESC is for Benjamin ESC series, please use the for vesc tool to adjust the parameters before use.
