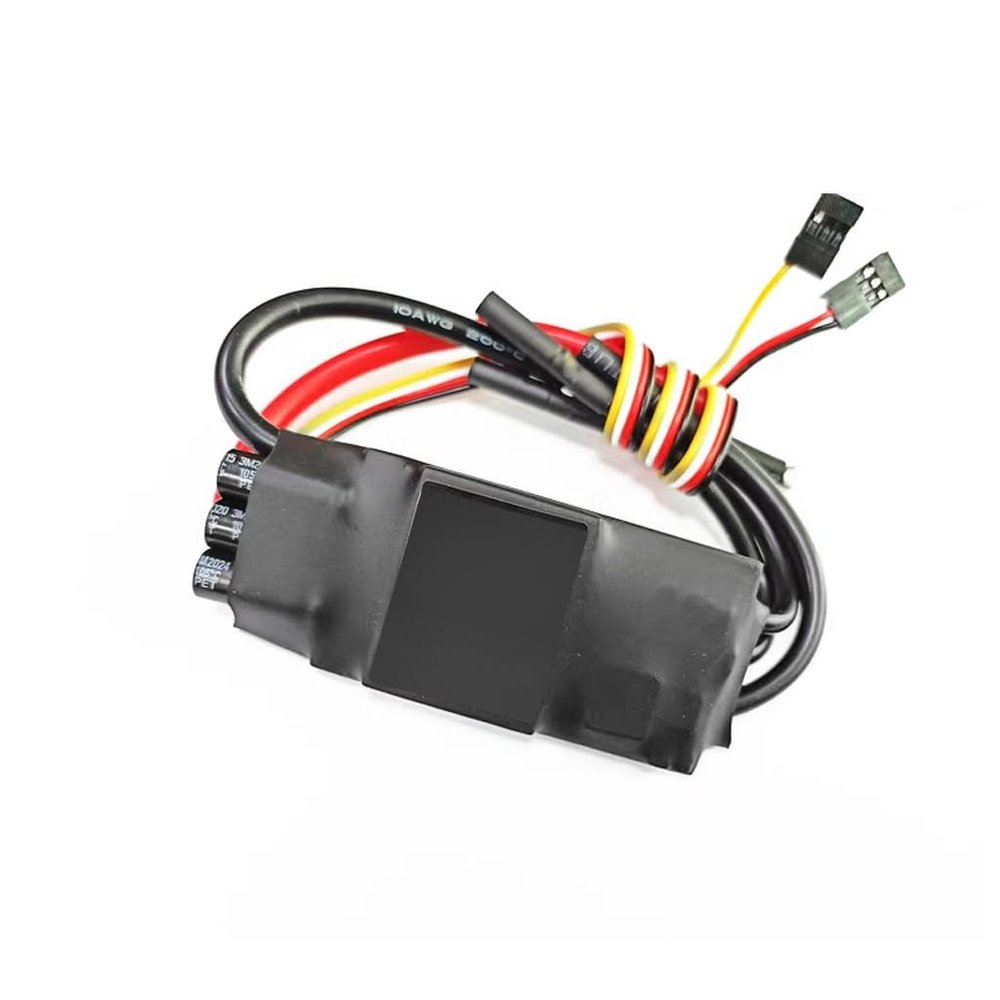

FEICHAO 40A 50A 80A 100A Brushless ESC 3-4S 3-6 Bidirectional ESC for RC Drone Quadcopter Aircraft (80A)

Description

• Safe power on function: When the power is turned on, the motor will not start immediately regardless of the position of the throttle lever, to avoid injury.
• Accelerator stroke calibration function: Adapt to the differences in throttle stroke of different remote controls, improve the linearity of throttle response.
• Program setting items (can be set using the remote control throttle lever or LED parameter setting card)
• Low voltage protection mode; Undervoltage protection; Overheat protection.
• Continuous/Peak Current: 40A/60A; 50A/70A; 80A/100A; 100A/120A.

Parameters:
Continuous/Peak Current: 40A/60A; 50A/70A; 80A/100A; 100A/120A
Power Plug: No plug
Remote Control: Yes
OTA Programmer: Not supported
WiFi Express Wireless Module: Not supported
Programming interface: independent programming line
Online firmware upgrade: Not supported

40A
Number of cells: 3-4SLiPo
BEC Output: Linear Mode, 5V, 5A
Power cord: 14AWG red-100mm*1 black-100mm*1
Output cable: black-16AWG-75mm*3
Output plug: 3.5mm gold plug (female)
LED Configurator: Yes
LED Programming Box Tuning: Not supported
LCD Programming Box Parameter Tuning: Not supported

50A
Number of cells: 3-4SLiPo
BEC Output: Linear Mode: 5V, 5A
Power cord: 14AWG red-100mm*1 black-100mm*1
Output cable: black-16AWG-75mm*3
Output plug: 3.5mm gold plug (female)
LED Configurator: Yes
LED Programming Box Tuning: Not supported
LCD Programming Box Parameter Tuning: Not supported
Programming interface: independent programming line
Online firmware upgrade: Not supported

80A
Number of cells: 3-6SLiPo
BEC Output: Linear Mode: 5V, 7A
Power cord: 12AWG red-150mm*1 black-150mm*1
Output cable: black-14AWG-100mm*3
Output plug: 4.0mm gold plug (female)
LED Configurator: Not supported
LED Programming Box Tuning Parameters: Yes
LCD Programming Box Parameter Tuning: Not supported

100A
Number of cells: 3-6SLiPo
BEC Output: Linear Mode: 5V, 7A
Power cord: 10AWG red - 150mm *1 black - 150mm *1
Output cable: black-12AWG-100mm*3
Output plug: 4.0mm gold plug (female)
LED Configurator: Not supported
LED Programming Box Tuning Parameters: Yes
LCD Programming Box Parameter Tuning: Not supported
