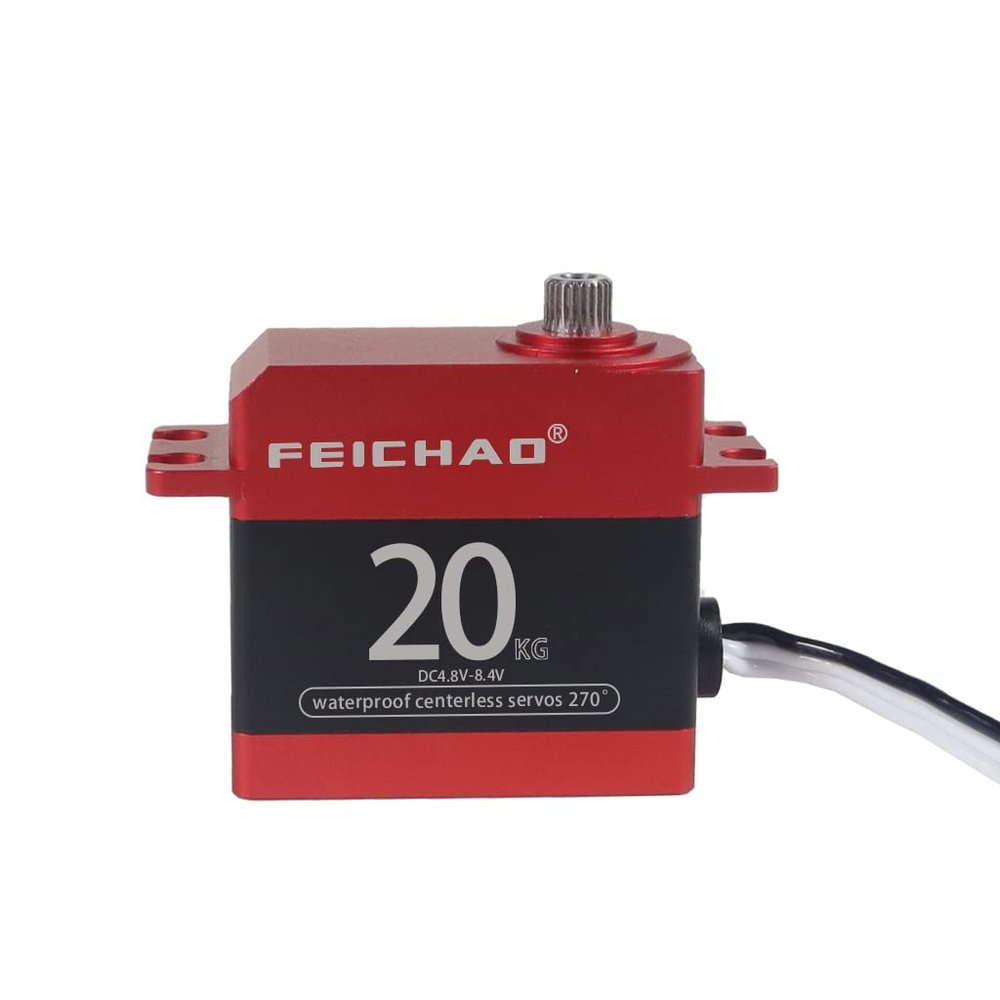

FEICHAO Waterproof 20KG Digital Servo Metal Gears Underwater Steering Gear High Torque Hollow Cup for 1/10 1/18 RC Car Boat (270 Degree)

Description

• Waterproof Servo: High precision metal gears with hard anodizing, CNC aluminum center shell for underwater using, could be used to boat, RC car, RC plane, helicopter.
• Working Voltage Range: 4.8-8.4V. No Load Speed: 4.8V / 0.13sec/60 , 8.4V / 0.11sec/60. Runnig Current: 4.8V / 460mA, 8.4V / 810mA.
• Peak Stall Torque: 4.8V / 18.5kg.cm, 8.4V / 22.0kg.cm. Stall Current: 4.8V / 3200mA10%, 8.4V / 4300mA10%. Idle Current: 4.8V / 0mA, 8.4V / 0mA.
• Dead Band Width: 3 usec. Pulse Width Range: 500?2500usec. Gear Type: 5 Metal. Wire Gauge No and Plug Type: 26AWG, JR plug.
• Horn Gear Spline: 25T (Diameter: 5.9mm, Height: 4.0mm. Not included). Brown Wire: Negative, Red wire: Positive, Orange Wire: Singal.

FEICHAO Waterproof 20KG Digital Servo Metal Gears Underwater Steering Gear High Torque Hollow Cup for RC Car Boat

Electrical Specification
Working voltage range: 4.8-8.4V
Idle current: 4.8V / 0mA, 8.4V / 0mA
No load speed: 4.8V / 0.13sec/60 , 8.4V / 0.11sec/60
Running current: 4.8V / 460mA, 8.4V / 810mA
Peak stall torque: 4.8V / 18.5kg.cm, 8.4V / 22.0kg.cm
Stall current: 4.8V / 3200mA10%, 8.4V / 4300mA10%

Control Specification
Command signal: Pulse width modification
Amplifier type: Digital controller
Pulse width range: 500?2500usec
Neutral position: 1500usec
Running degree: 1803(when 500?2500usec)
Dead band width: 3 usec
Rotating direction: Counterclockwise (when 1000?2000usec)

Apply Temperature
Storage Temperature Range: -30C?80C
Operating Temperature Range: -25C?70C

Test Environment
Temperature Range: -25C?70C
Humidity Range: 65%10%

Details
High precision metal gears with hard anodizing
CNC aluminum center shell
Size: 40.0*20.0*37.8mm
Weight: 80g5%
Gear type: 5 Metal
Bearing: 2BB
Horn gear spline: 25T (Diameter: 5.9mm, Height: 4.0mm. Not included).
Horn type: Plastic, POM
Connector wire: 320mm5mm
Motor: centerless
Splash water resistance: yes
Housing material: PA66 + 40% fiber
Wire gauge no and plug type: 26AWG, JR plug
Brown Wire: Negative
Red wire: Positive
Orange Wire: Singal
Application: RC car, RC plane, boat, helicopter
