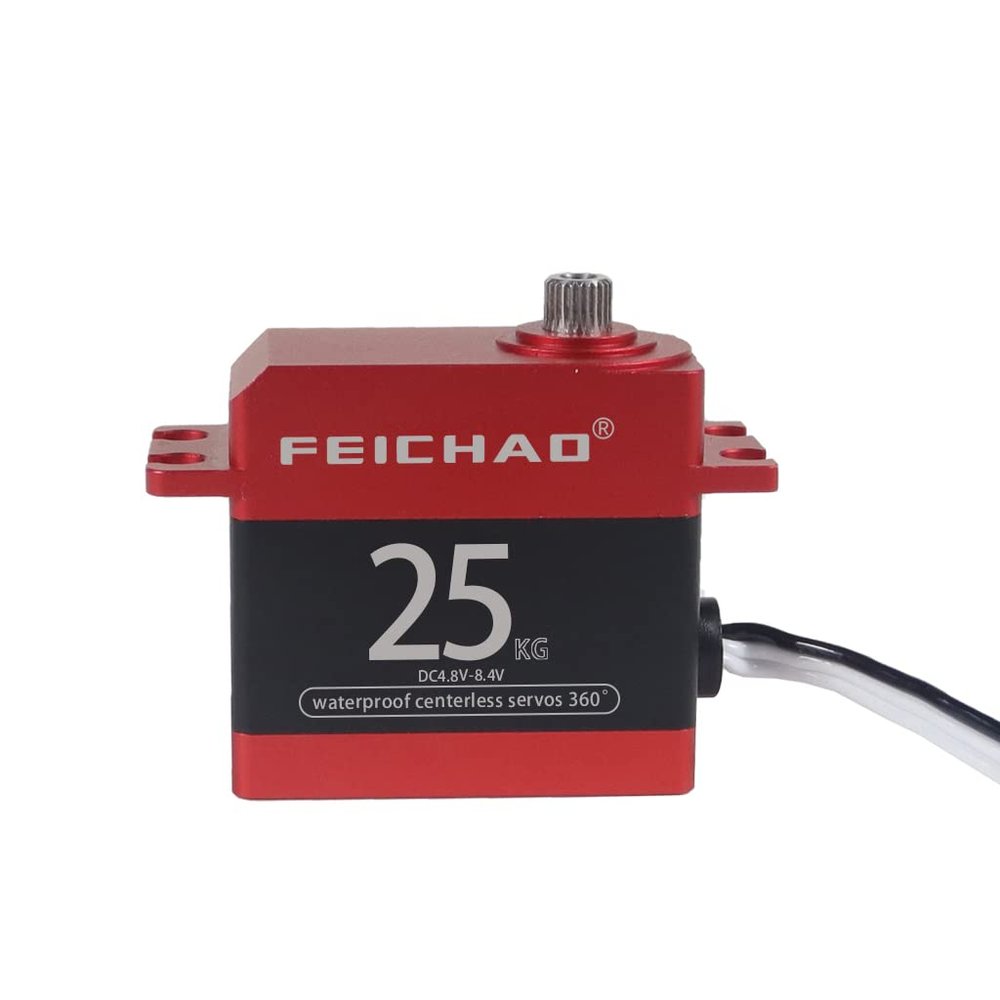

FEICHAO Waterproof 25KG Digital Servo Metal Gears Underwater Steering Gear High Torque Hollow Cup for 1/10 1/18 RC Car Boat (360 Degree)

Description

• Waterproof Servo: High precision metal gears with hard anodizing, CNC aluminum center shell for underwater using, could be used to boat, RC car, RC plane, helicopter.
• Working Voltage Range: 4.8-8.4V. No Load Speed: 4.8V / 0.14sec/60 , 8.4V / 0.11sec/60. Runnig Current: 4.8V / 480mA, 8.4V / 810mA.
• Peak Stall Torque: 4.8V / 23.5kg.cm, 8.4V / 27.5kg.cm. Stall Current: 4.8V / 3600mA10%, 8.4V / 4500mA10%. Idle Current: 4.8V / 0mA, 8.4V / 0mA.
• Dead Band Width: 3 usec. Pulse Width Range: 500?2500usec. Gear Type: 5 Metal. Wire Gauge No and Plug Type: 26AWG, JR plug.
• Horn Gear Spline: 25T (Diameter: 5.9mm, Height: 4.0mm. Not included). Brown Wire: Negative, Red wire: Positive, Orange Wire: Singal.

FEICHAO Waterproof 25KG Digital Servo Metal Gears Underwater Steering Gear High Torque Hollow Cup for RC Car Boat Electrical Specification Working voltage range: 4.8-8.4V Idle current: 4.8V / 0mA, 8.4V / 0mA No load speed:4.8V / 0.14sec/60, 8.4V / 011sec/60 Running current:4.8V / 480mA, 8.4V / 810mA Peak stall torque:4.8V / 23.5kg.cm, 8.4V / 27.5kg.cm Stall current:4.8V / 3600mA10%, 8.4V / 4500mA10% Control Specification Command signal: Pulse width modification Amplifier type: Digital controller Pulse width range: 500?2500usec Neutral position: 1500usec Running degree: 1803(when 500?2500usec) Dead band width: 3 usec Rotating direction: Counterclockwise (when 1000?2000usec) Apply Temperature Storage Temperature Range: -30C?80C Operating Temperature Range: -25C?70C Test Environment Temperature Range: -25C?70C Humidity Range: 65%10% Details High precision metal gears with hard anodizing CNC aluminum center shell Size: 40.0*20.0*37.8mm Weight: 80g5% Gear type: 5 Metal Bearing: 2BB Horn gear spline: 25T (Diameter: 5.9mm, Height: 4.0mm. Not included). Horn type: Plastic, POM Connector wire: 320mm5mm Motor: centerless Splash water resistance: yes Housing material: PA66 + 40% fiber Wire gauge no and plug type: 26AWG, JR plug Brown Wire: Negative Red wire: Positive Orange Wire: Singal Application: RC car, RC plane, boat, helicopter
