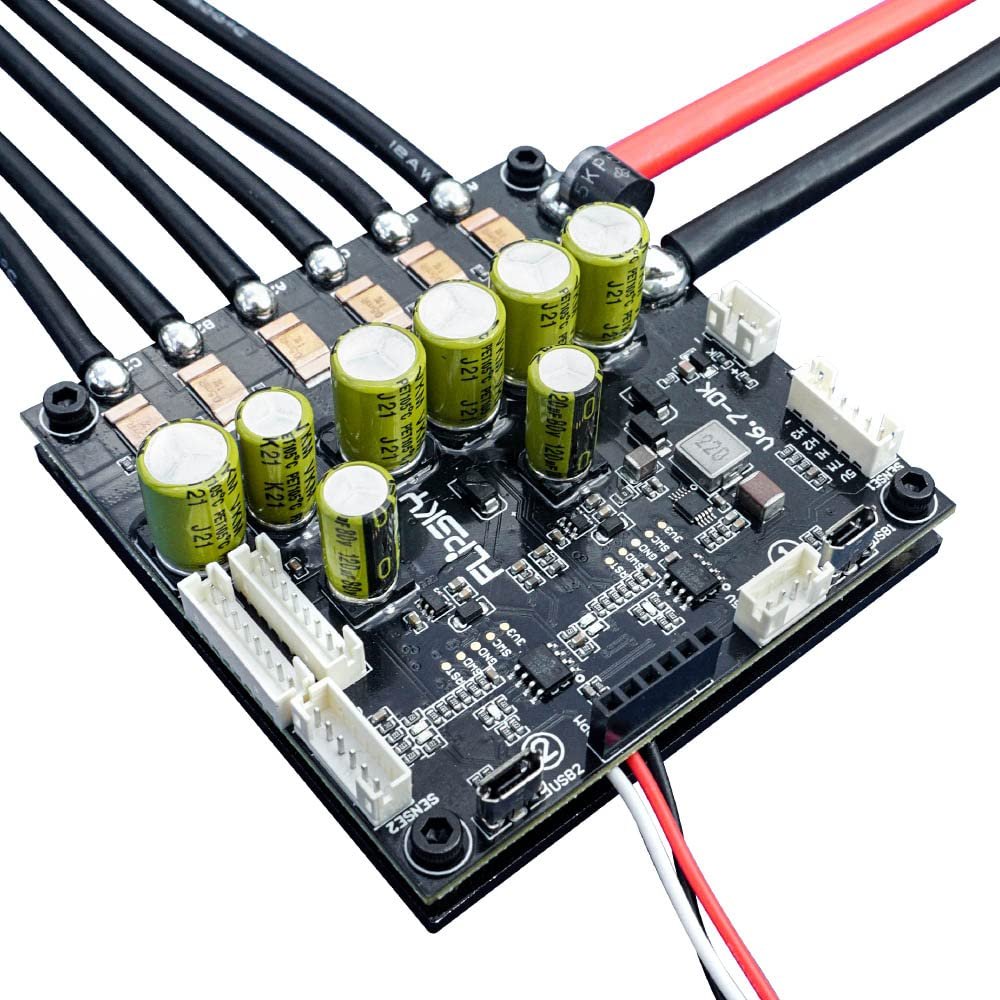

Flipsky Dual FSESC6.7 Plus with Anti-Spark Switch Integrated Based on VESC6 Electric 100A 12S ESC Speed Controller for Electric Skateboard

Description

• Dual FSESC6.7 Plus(Pro swtich) based on Dual FSESC6 with Power on/off by pressing the button.
• Changed the USB port soldering process to SMT soldering instead of manual soldering.Changed the big capacitors to SMT mounting capacitors ,and add more mosfets in the bottom side.
• Added Can bus connector, be more convenient for 4WD set up
• Changed the USB port soldering process to SMT soldering instead of manual soldering,Changed the big capacitors to SMT mounting capacitors ,and add more mosfets in the bottom side.
• Warm tips: It is recommended to keep firmware 5.2 from factory ship, the new firmware upgrade may damage the ESC.
• Please do not remove the shrink to protect the pcb electronics components from impurites or metals which result in short circuit or esc burnt damage.

Dual FSESC6.7 Plus(Pro swtich) based on Dual FSESC6
Upgraded features:
Pro switch version:
Power on/off by pressing the button
Added Can bus connector, be more convenient for 4WD set up
Changed the USB port soldering process to SMT soldering instead of manual soldering
Changed the big capacitors to SMT mounting capacitors ,and add more mosfets in the bottom side.
Spec:
Hardware: V 6.7
Firmware: Latest firmware version
Voltage: 8V - 60V (Safe for 3S to 12S LiPo) for the dual ESC
Voltage spikes may not exceed 60V
Current: Continuous 100A single, total 200A , Instantaneous current 400A per single, total 800A for system instantaneous current.
5V 1.5A output for external electronics for single
3.3V 1A output for external electronics for single
Modes: DC, BLDC, FOC (sinusoidal)
Supported sensors: ABI, HALL, AS5047
Size: 78x78x20mm including heatsink
Reminder: Detected battery voltage tolerance: +/-0.6V
The shipping package contains:
1*Dual FSESC6.7+Heatsink
2*ESC Sensor Wires
1*LED button
1*Micro USB
1*Manual
