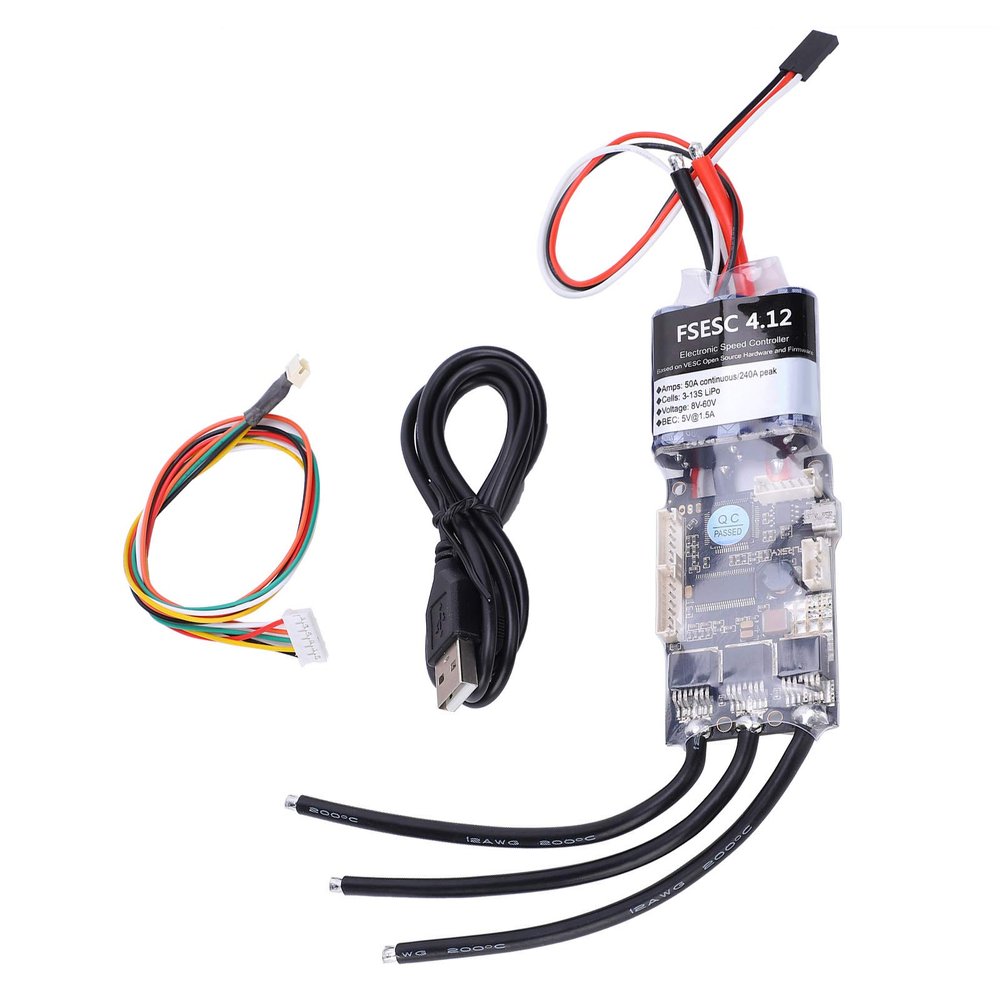

Flipsky ESC V4.12 50A High Current Electronic Speed Control for DIY Skateboard Conversion, Compatible with VESC Software, Smooth Start and Electric Brake

Description

• [Versatile Applications] Ideal for DIY electric skateboard conversion, this ESC is also suitable for scooters, robots, and various other products.
• [Smooth Start and Powerful Brake] Unlike traditional RC ESCs, this Flipsky ESC enables a sensorless motor for a smooth start. It also provides a powerful, reliable, and progressive electric brake.
• [Small and Exquisite] This highly modifiable Electronic Speed Control (ESC) is small in size and lightweight, making it suitable for a wide range of applications.
• [Widely Compatible] Based on the VESC open source project, this ESC is compatible with VESC software, allowing for easy customization and adjustments.
• [High Current Capacity] With a maximum continuous current of 50A, this ESC offers temperature and current limit for enhanced safety and performance. It supports multiple control modes.

Specification:
Condition: Brand New
Item Type: Electronic Speed Control
Color: As Pictures Shown
Material: PCB Board + Aviation Aluminum Alloy Heat Sink + Thermal Gel + Mos Tube
Model: V4.12 ESC Standard Configuration
Hardware: V4.12
EPRM: 60000
Firmware: V3.40 (Retain the Latest Firmware Version)
PCB: 4 Layers
PCB Size: Approx. 40 x 60mm / 1.57 x 2.36in
Current: Continuous 50A /240A, It Depends on the Installation and Ambient Temperature Around the Device
Voltage: 8-60V (Can Be Used for 3S to 12S Lipo, theVoltage Must Not Exceed 60V!)
Recommend 10s Battery(not included)
Bec: 5V@1.5A
BEC Type: Internal Driver Support
Time: Software Calibration
Motor Control Interface: PPM(RC Servo), Analog, UART, I2C
USB or CAN Bus.
Cut-Off Voltage: Programmable
Frequency: PWM Input
Governor: No
Weight: Approx. 80g / 0.18lb
Fsesc4.12 Size: Approx. 110x40x20mm / 4.3 x 1.6 x 0.8in
Programming Card: No
Reverse: Yes
Motor Wire: 12AWG
Power Cord: 12AWG

Package List:
1 x Electronic Speed Control

1 x USB Cable
1 x VESC Sensor Line
1 x Manual

Note:
By default, the LED button has been inserted into the switch at the factory. Please do not turn on the power of the switch without the LED button connected.
