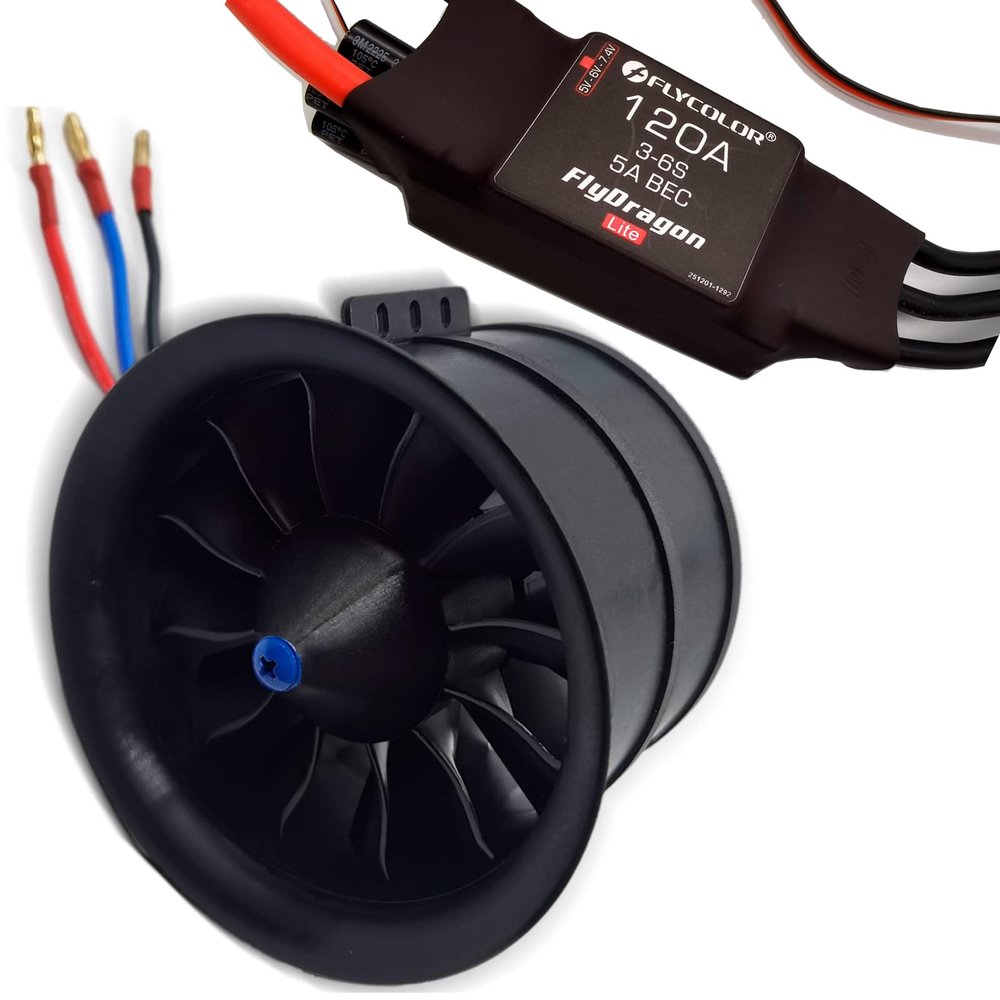

FLYCOLOR 90mm EDF 12 Blades Ducted Fan with 1450KV RC Brushless Motor with 120A ESC 3-6S Electric Speed Controller for RC Jet Airplane

Description

• Advantages:All the EDF with motor have already dynamic balance tested.Running smoothly,Easy cooling,Stable structure,Safe and durable,excellent realistic sound.Make your plane more Efficient and stable.All the motor has been soldered the banana plug.
• Main Parameter: 90mm EDF with 1450KV/6S motor: max continuous current is 124A,max thrust is 3790g.Motor weight 224g.Thus we recommend 120A ESC and 6s battery.
• Motor: motor Continuous operation, high temperature resistance,wear resistance and stable,its more anti-aging and durable.Premium motor provides stable and balanced operation when in continuous working.
• Function Using C8051F850 MCU, pipelined 8-bit C8051 core . FlyDragon Lite series, unique circuit design, Built-in 5V/6V/7.4V, 5A adjustable BEC, it can be selected by switch according requirement (Default 5V. Make sure BEC voltage is correct before connection.).
• Start mode can be set, throttle response is fast and speed control is linear smooth.strong anti-interference.

EDF parameter:
Material: PA66+GF
Gold plated connector: 4.0
KV: 1450KV
Motor Weight: 224g
Housing Weight: 145g
Max Voltage: 25.2V
Max Current: 124A
Max power: 3125W
Max Thrust: 3790g
Set Weight: 379g
diameter: 90mm

ESC parameter:
Continuous Output: 120A
Bursts Output: 120A for 15 seconds
UBEC: 5V/6V/7.4/5A
Lipo Battery: 3 - 6s (cells)
NiCd/NiMH: 5 - 18 cells
Voltage Input: 11.1v - 22.2v
Size: 82mm x 36mm x 25mm
Weight: 143g
Motor Type: Brushless Motor
Package Included
90MM EDF *1
120A ESC *1
