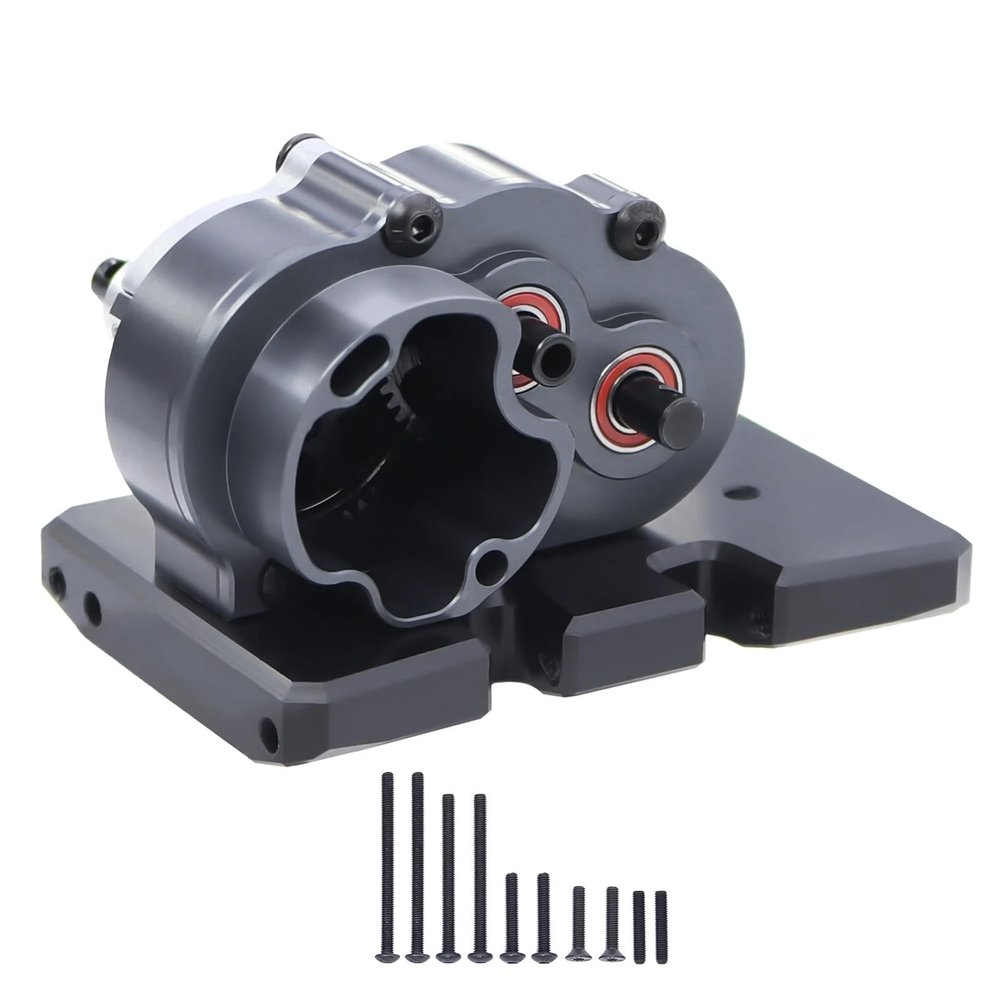

for LCG OD-3 Overdrive Gearbox Transmission Gear Ratio 3.66:1 for 1/10 RC Crawler Axial SCX10 II Capra DIY LCG Chassis Upgrade Parts

Description

• Transmission: 35Lx59Wx36H (in mm)
• Skid Plate: 48Lx72Wx9H (in mm)
• Weight:
• Transmission: 70.5g / 2.52oz
• Skid Plate: 31.5g / 1.11oz

Features:
7075 high strength aluminum case.
Heat treated alloy steel gears.Grade 5 Titanium output shafts.
Lightweight 70.0g / 2.46oz (not include base plate)
Machined solid delrin skid plate, super slippery for sliding over rocks and debris.
Includes hardware required for assembly
Gear ratio:3.66:1, plus 44T spur gear.
Uses 48P pinion gears from 9 to 17 teeth(Not Included).
Use 12T pinion gear as a starting point for most AR44 applications with overdrive front gears.
18.6% overdrive (both outputs spin same direction, so no need for flipped ring gears).
28% overdrive when used with underdrive rear ring and pinion.
38% overdrive when used with underdrive and overdrive ring and pinion.
Specifications:
Dimensions:
Transmission: 35Lx59Wx36H (in mm)
Skid Plate: 48Lx72Wx9H (in mm)
Weight:
Transmission: 70.5g / 2.52oz
Skid Plate: 31.5g / 1.11oz
Package List:
1*OD-3 Overdrive Gearbox With Skid Plate
