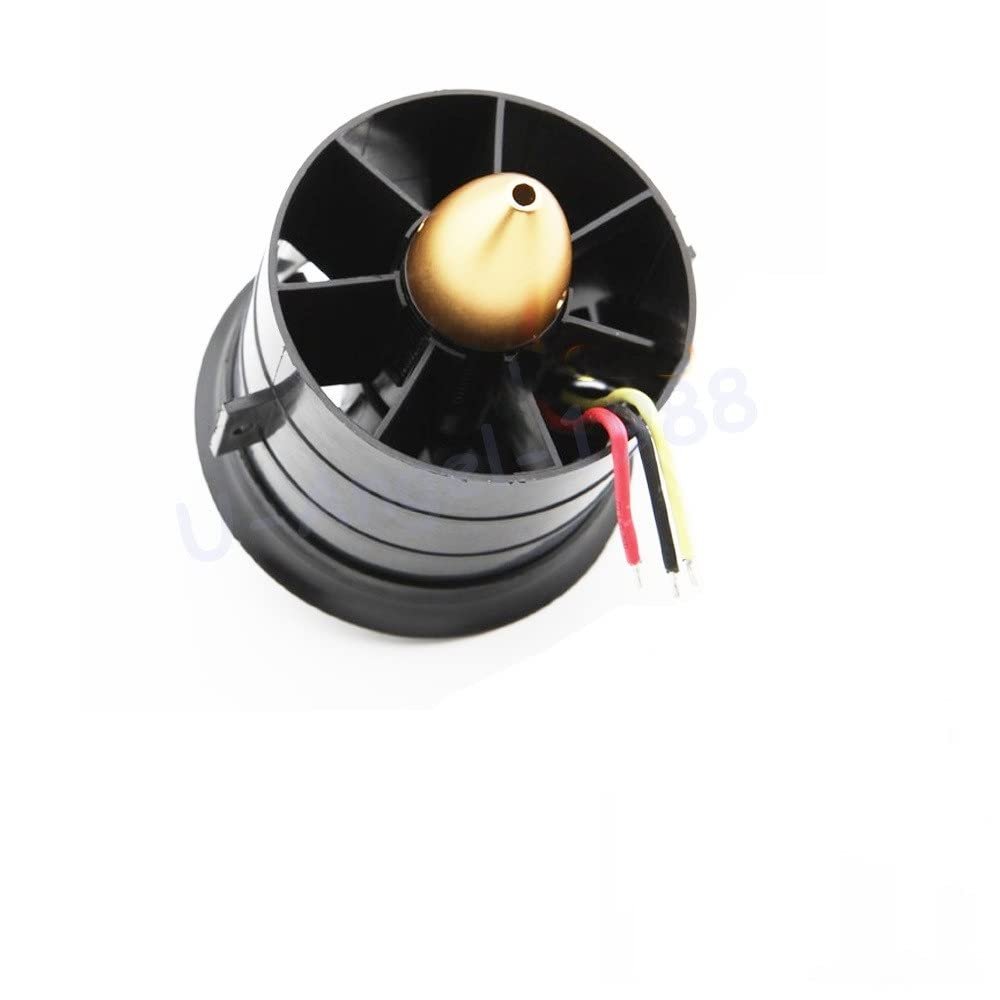

FTYUERT Drone toy accessories for Jet Plane Fan 64mm 70MM 90MM 120MM 12 Blades Ducted Fan System EDF for Jet Plane with Brushless Motor RC Plane EDF RC Helicopter(70MM 4S 2600KV)

Description

• Made of - material, and less burrs and good texture. And with better wear resistance, the life time can be longer.
• Repair parts, used for accidental damage replacement, making repairs more worry-free,
• Tested in good condition,100% working!
• Long service life and easy to install.

For Jet Plane Fan 64mm 70MM 90MM 120MM 12 Blades Ducted Fan System EDF For Jet Plane with Brushless Motor RC Plane EDF RC Helicopter

64mm-12 Blade ducted fan
Optional two motors for 3s lithium battery / 4s lithium battery
Specifications 1. 64mm-12 leaves 3S lithium battery with 2627-3200kv motor
Specifications 2. 64mm-12 leaves 4S lithium battery with 2836-2500kv motor
Ducted air duct diameter: 64mm
Number of leaves: 12 leaves

Product parameters:
64mm-12 Blade 3S lithium battery with 2627-3200kv motor
Maximum thrust: 600g
Power: 3s lithium battery (DC 11-13v)
64mm-12 leaf 4S lithium battery with 2836-2500kv motor
Maximum thrust: 1000g
Power: 3-4S lithium battery (DC 11-17v)
can fit this esc:
For Hobbywing For skywalker 50A(2-4s) brushless ESC
Product Name: 70mm-12 leaf duct
Motor model: 2839-2600kv brushless motor
Air tube diameter: 70mm
Number of leaves: 12 leaves
Power: 3s-4s lithium battery (11-17v)
Thrust: 1.1kg--1.5kg
Maximum current: 53A (can be equipped with brushless ESC 60A or above)
Weight: 170g

can fit this esc:
For Hobbywing For skywalker 50A(2-4s) brushless ESC
90mm-11 leaf duct
Voltage 20-25v (6s lithium battery)
Duct hole diameter 90mm
Blade: 11 leaves
Motor model: 3553-1450kv
Thrust: 3.5kg
Maximum current: 79A
Weight: 352g

can fit this esc: For Hobbywing For SkyWalker 60A Brushless ESC Speed Controller
120mm-11 leaf duct
Voltage 45-55v (10-12S lithium battery)
Duct hole diameter 120mm
Blade: 11 leaves
Including motor, model: 5075-650kv
Thrust: 6500g-7500g
Current: 120A-140A
Weight: 790g
can buy this esc: For Hobbywing Platinum HV V4 130A BEC / OPTO 5-14S Lipo Empty mold Brushless ESC
