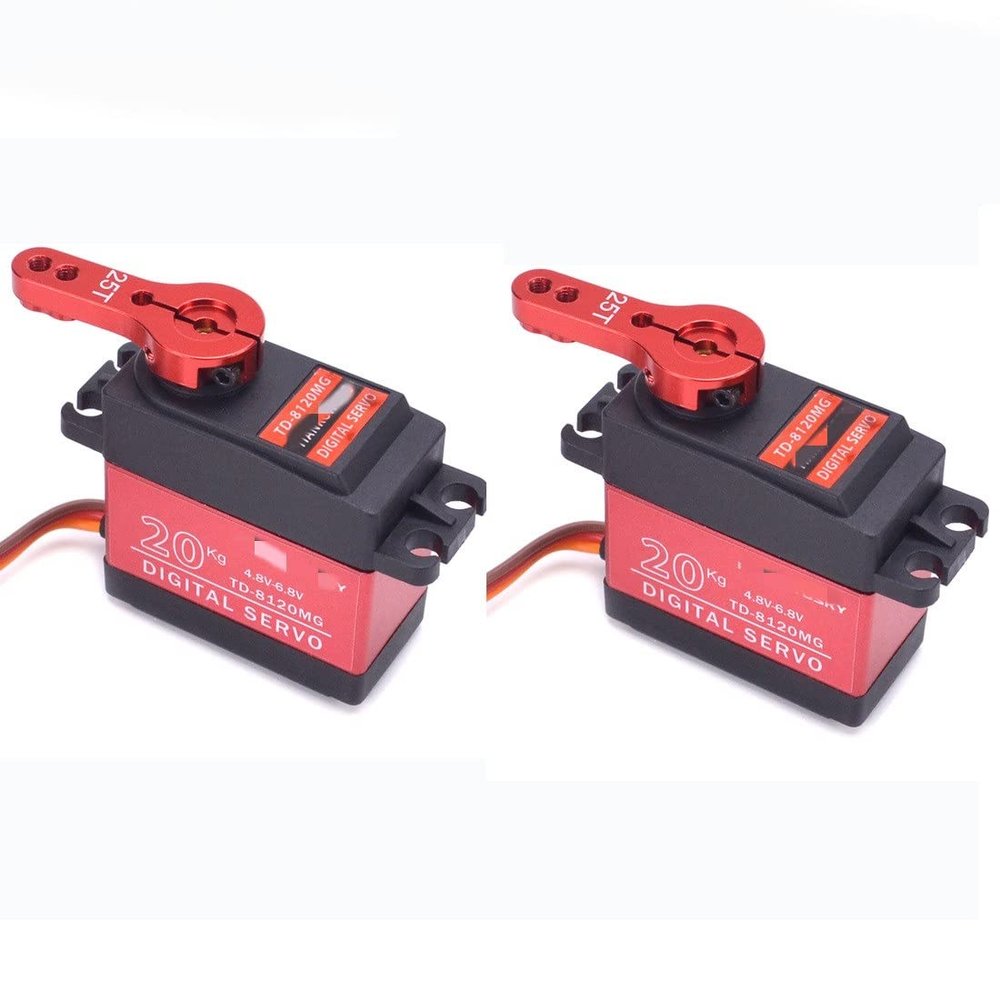

FTYUERT Drone toy accessories for TD8120MG 20kg / for TD8325MG 25kg High Torque Coreless Motor Servo Waterproof Digital 180 Degree Servo Use with Remote Control(2x20KG 2X 25T Arm)

Description

• Made of - material, and less burrs and good texture. And with better wear resistance, the life time can be longer.
• Made of - electronic components, the electronic performance is more stable..
• Tested in good condition,100% working!
• Long service life and easy to install.

For TD8120MG 20kg / For TD8325MG 25kg High Torque Coreless Motor Servo Waterproof Digital 180 Degree Servo Use with Remote Control

20KG Servo:
- High-precision metal gears with hard anodizing
- CNC aluminium middle Shell,
Control system : For PWM control (1500 u-sec is the central point)
Working voltage:4.8V ~ 6V
Working temperature: -20C~ +60C
Torque :4.8V /17.2kg.cm
6.0V /20.3kg.cm
Idle speed :4.8V/0.15sec / 60 deg
6.0V/0.13sec / 60 deg
Steering angle: 180 Degree control by remote control
Idle current:4.8V/470mA 6.0V /650mA
Load current :4.8V/750mA 6.0V /950mA
Dead band :2usec
Lifetime:>15000 times without load
Moving angle:6010
Drive type: For MOS drive
Motor type:Cored motor
Potentiometer type:Direct drive
Signal booster type:Digital
Size:40.5X20.2X40.3mm
Weight : 62g (without accessories)
Ball Bearing:2BB
Gear material:Metal gear
Case material: PA66+fiber40%
Wire length:260mm
Wire gauge No and plug type: For 26AWG, For JR plug
Brown wire: Negative
Red wire:Positive
Orange wire:Singal
Application:RC car, RC airplane, Helicopter

25KG Servo:
Apply Environmental Conditon:
1.Storage Temperature Range: -30C-80C
2.Operating Temperature Range: -25C-70C
Standard Test Environment:
1.Temperature Range: -25C-70C
2.Humidity Range: 65%10%
Mechanical Specification:
1. Size: 40.0*20.5*40.5mm
2. Weight: 56g2g
3. Gear type: 5 Metal
4. Limit angle: 360
5.Bearing: 2BB
6. Horn gear spline: 25T Diameter:5.9mm
7. Horn type: Plastic, For POM
8.Case : Engineering plastics(PBT)+Aluminum alloy
9. Connector wire: 320mm5mm
10.Motor: Carbon brush motor
Steering angle: 180 Degree control by remote control
Electrical Specification:
1.Operat voltage: 4.8V - 7.2V
2.No load speed: 0.18sec/60 - 0.14sec/60
3.Running current: 140mA - 200mA
4.Peak stall
