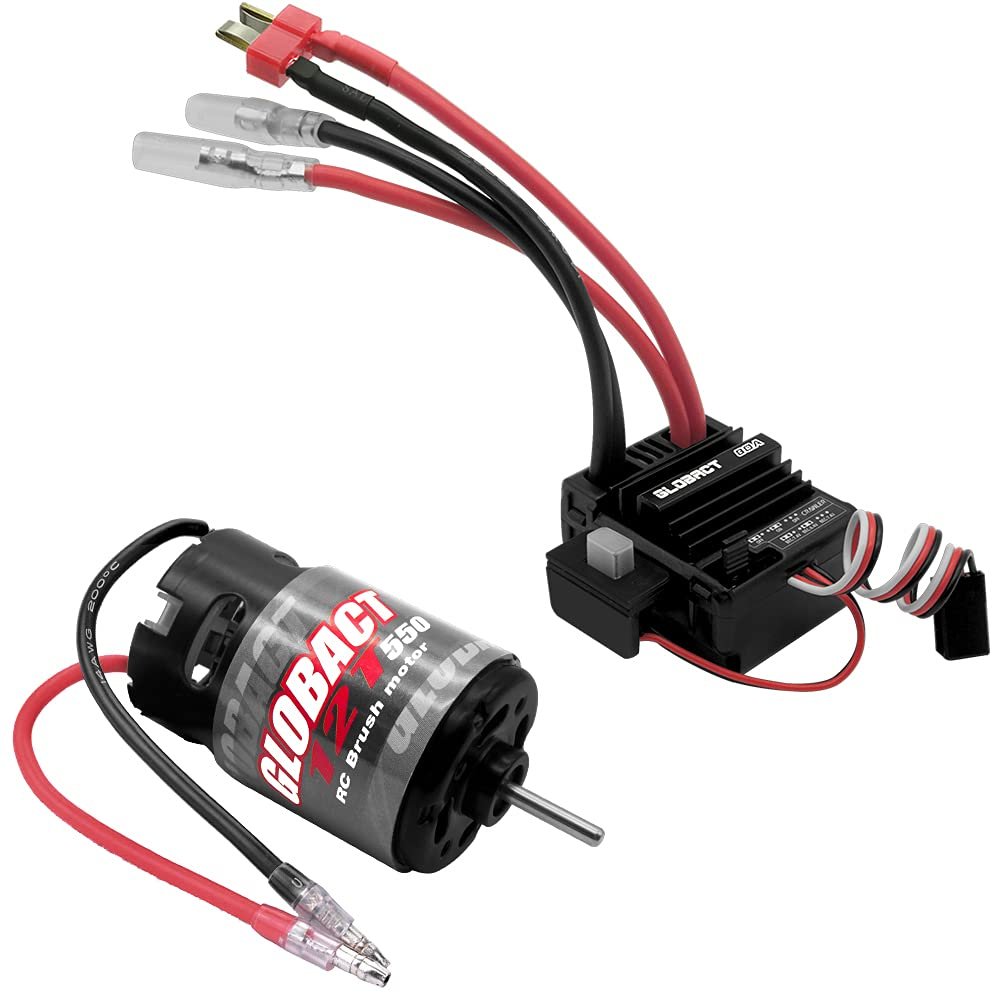

GLOBACT 550 Brushed Motor 12T and 80A ESC Brushed Motor ESC Combo ESC Dual Mode BEC 5A 7.4V/6.4V for 1/10 Slash 2WD 44 Arrma Granite Senton Typhon 44 Redcat Axial HPI (T Plug)

Description

• Compatible withSuit for 1/10 Electric RC Truck Car Off Road Slash 2WD 44 / Stampede 4x4 / Bandit / Rustler / F-150 Raptor / Replaces 550 12 Turn Motor (Part # 3785), Arrma Senton 44 550 / Granite 44 550 / Typhon 44 550, Redcat Axial HPI Wltoys Etc.
• Multiple protectionsLow voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection. Note: The ESC signal cable has reverse connection protection, The power cord has no reverse connection protection.
• Waterproof The high-quality components. Applicable to All Weather Conditions, The waterproof and dust-proof desi?n allows the Globact 550 motor 80A esc Brushed to be used in all weather conditions without any issue of damage causedto the ESC from water or dust.
• Dual Running ModeESC supports BEC high voltage & low voltage switching (5A 7.4V/6.4V), Crawlers & High Speed Dual Mode switching, Input voltage: 7.4V(2S Lipo, Note: Not compatible with 3S Lipo battery), 6V-8.4V (5-7cells NiMH). Note: It is recommended to use crawlers mode for crawlers vehicles and high-speed mode for trucks.
• High qualityThis Set is an enhanced package. The conventional 550 motor set ESCs on the market are all 60A. We use 80A ESC, which can better solve the fire problem caused by the overcurrent and overload of the ESC, so that you can use it without worry.

ESC Specifications:
Product Name: Globact Brushed 80A ESC
Type: Brushed
Waterproof level: IP65
Forward: persistent current/peak current: 80A /320A
Reverse: persistent current/peak current: 40A /160A
Voltage: 7.4V (2S Lipo) / 6V-8.4V (5-7 cells NiMH)
BEC output: Switch Mode: 5A 7.4V/6.4V Adjustable
Running mode: Crawlers & High Speed Adjustable (Forward / Reverse)
ESC Programing via: Program Port Jumper Cap
Input ConnectorsT Connector
Output Connecotors4.0 Bullet Connectors (Female)
Size42x35x27mm
Weight50g
Motor Specifications:
Item name: Globact 550 12t Motor
Color: Black
Size: 550
Turns: 12T
Watts: 137W
Voltage: 7.4V (2S Lipo) / 6V-8.4V (5-7 cells NiMH)
Max Amps: 70A
KV(RPM/Volt): 12T
Max RPM: 22500
Waterproof level: IP65
Diameter: 36mm
Length: 55mm
Length of extend shaft: 11mm
Shaft diameter: 3.175mm
Packing List:
1 * GLOBACT Brushed 80A ESC
1 * GLOBACT 12T 550 motor
1 * User manual
