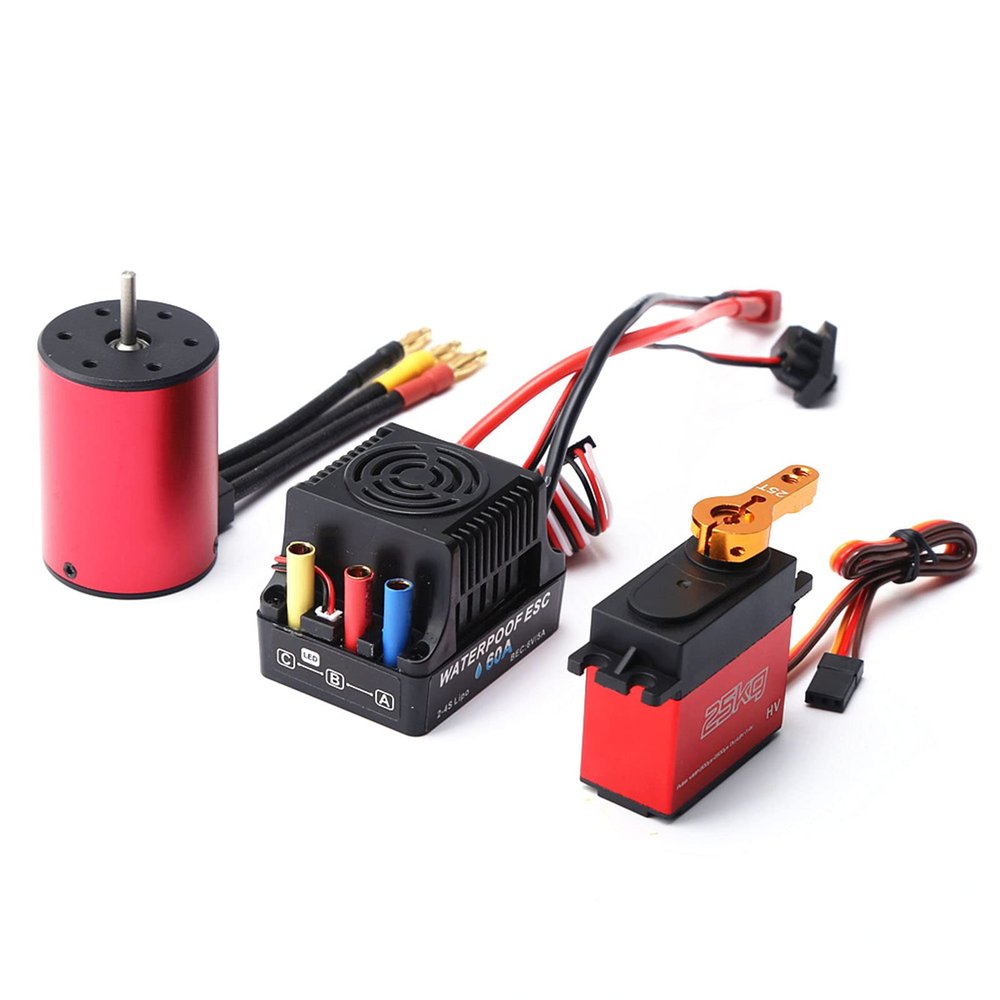

GoolRC 3650 5200KV Brushless Motor with 60A Brushless ESC Electric Speed Controller and 25KG Digital Servo, Waterproof Motor ESC Combo Set for 1/8 1/10 RC Car

Description

• The set includes a 5200KV brushless motor, a 60A ESC and 25KG digital servo, which is perfectly fit for the 1/8 1/10 RC car and is designed to provide both quality and performance at an affordable price.
• The ESC features enhanced throttle response, excellent acceleration, strong breaks and throttle linearity. Supports program card to make adjustments.
• High purity copper windings maximize efficiency, a precision-balanced rotor, smoothness for best reliability and maximum RPM.
• Efficient and high-speed ball bearings, precision-engineered for maximum energy conversion.
• Multiple protection features: Low voltage cut-off protection for lithium battery, Over-heat protection, Throttle signal loss protection, motor blocked protection.

Features:
The set includes a 5200KV brushless motor, a 60A ESC and 25KG digital servo, which is perfectly fit for the 1/8 1/10 RC car and is designed to provide both quality and performance at an affordable price.
The ESC features enhanced throttle response, excellent acceleration, strong breaks and throttle linearity. Supports program card to make adjustments.
High purity copper windings maximize efficiency, a precision-balanced rotor, smoothness for best reliability and maximum RPM.
Efficient and high-speed ball bearings, precision-engineered for maximum energy conversion.
Multiple protection features: Low voltage cut-off protection for lithium battery, Over-heat protection, Throttle signal loss protection, motor blocked protection.

Specifications:
3650 Brushless Motor:
KV(RPM/Volt): 5200KV
Watt: 850
Max RPM: 60000
Max Voltage: <8.4V
Max Amps: 100A
Rotor Poles: 4
Diameter: 36mm
Length: 50mm
Shaft Length: 15mm
Shaft Diameter: 3.175mm
Connector: 4.0mm Gold

60A Brushless ESC:
Item Model: 60A
Type: Brushless
Voltage Level: Normal
Continuous Current: 100A
Burst Current(10s): 800A
Suggested Battery Cell: 2-4S Lipo
BEC Output: 6.0V/5A
Size: 52*39*38mm

25KG Digital Servo:
Operating Voltage: 4.8 ~ 6.8 DC Volts
Dead Brand: 3mus
Weight: 60g
Motor Type: DC Motor
Gear Type: Copper & Aluminum
Working Frequence: 50-333Hz
Operating Travel: 180deg?PWM 500-2500mus?or 270deg(PWM 500-2500mus)
Size: 40*20*40.5mm

Packing List:
1* 5200KV Brushless Motor
1* 60A ESC
1* 25KG Digital Servo
