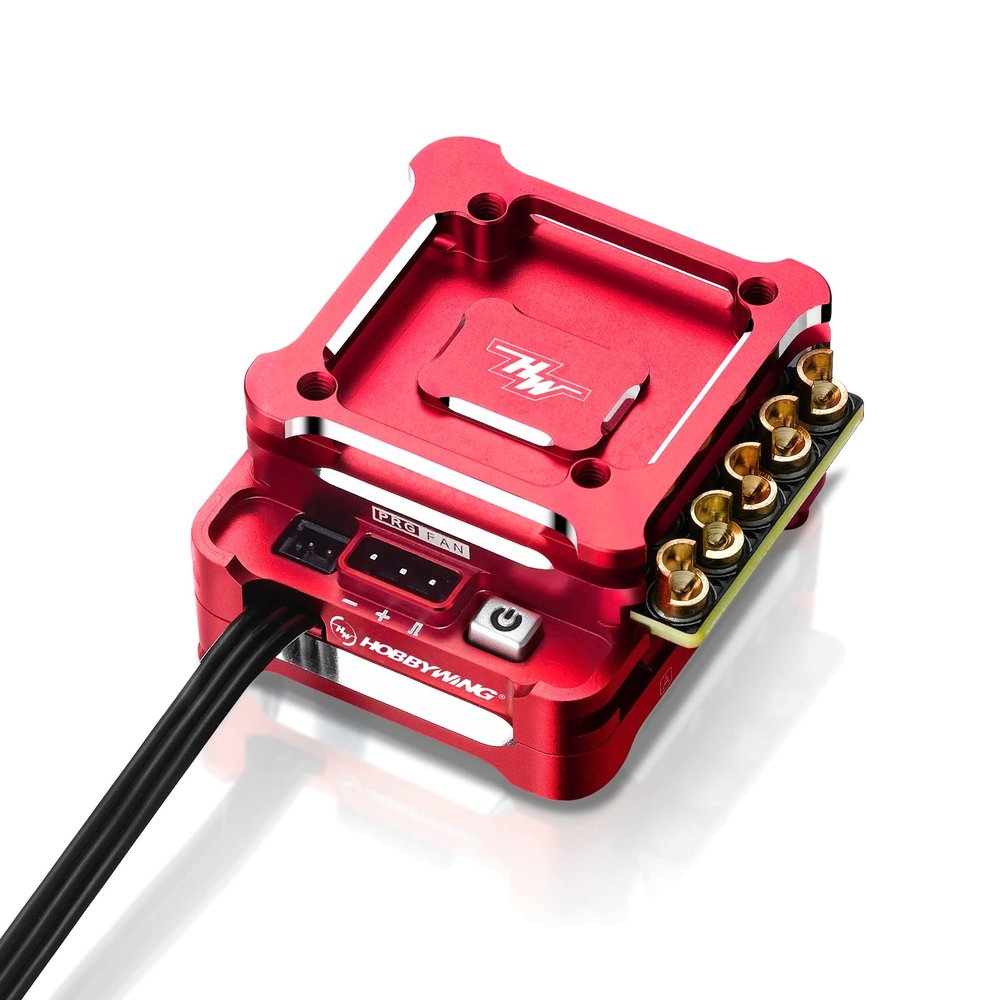

HOBBYWING Xerun XD10 Pro ESC Series (Xerun XD10 Pro - Red)

Description

• XERUN XD10 Pro Series Cont./Peak Current(100A/800A) LiPo/NiMH Cells (2S LiPo/4-6S NiMH) BEC Output (5-7.4V Adjustable, Continuous Current of 5A (Switch-mode)
• Built-in switch mode BEC with a maximum output of 10A and voltage adjustable from 5V to 7.4V (step: 0.1V) for usage with servos & other devices require different voltages.
• Separate PRG/FAN port is able to power an external fan for maximize cooling performance or connect a LCD program box or WiFi module to the ESC. Variable frequency regulation of PWM & brake frequencies allows users to precisely regulate the driving & braking forces (of the motors).
• Multiple protections: low-voltage cutoff protection, ESC and motor thermal protection, and fail safe (throttle signal loss protection),reverse polarity protection (the external standard cappack will still be damaged if battery reversal occurs).
• Data logging for recording the maximum ESC/motor temperature, motor speed/RPM, and others in real time. Firmware upgrade via Hobbywing multifunction LCD program box or OTA Programmer (item sold separately).

Congratulations and thank you for your trust in Hobbywing product. By purchasing the XERUN XD10 Pro, you have chosen a high performance sensored brushless electronic speed controller! This speed controller is equipped with high-tech features to enhance your experience with Hobbywing brushless power systems. To avoid short circuits, ensure that all wires and connections must be well insulated beforeconnecting the ESC to related devices. Ensure all devices are well connected to prevent poor connections and avoid damage to your electronic devices. Read through the manuals of all power devices and chassis and ensure the power configuration is rational before using this unit. Please use a soldering iron with the power of at least 60W to solder all input/output wires and connectors. Do not hold the vehicle in the air and rev it up to full throttle, as rubber tires can expand to extreme size or even crack to cause serious injury. Stop immediate usage once the casing of the ESC exceeds 90C/194F as this may cause damage to both the ESC and motor. Hobbywing recommends setting the ESC Thermal Protection to 105C/221F (this refers to the internal temperature of the ESC). Users must always disconnect the batteries after use as the current on the ESC is consuming continuously if it is connected to the batteries (even if the ESC is turned off). The battery will completely be discharged and may result in damage to the battery or ESC when it is connected for a long period of time. This WILL NOT be covered under warranty.
