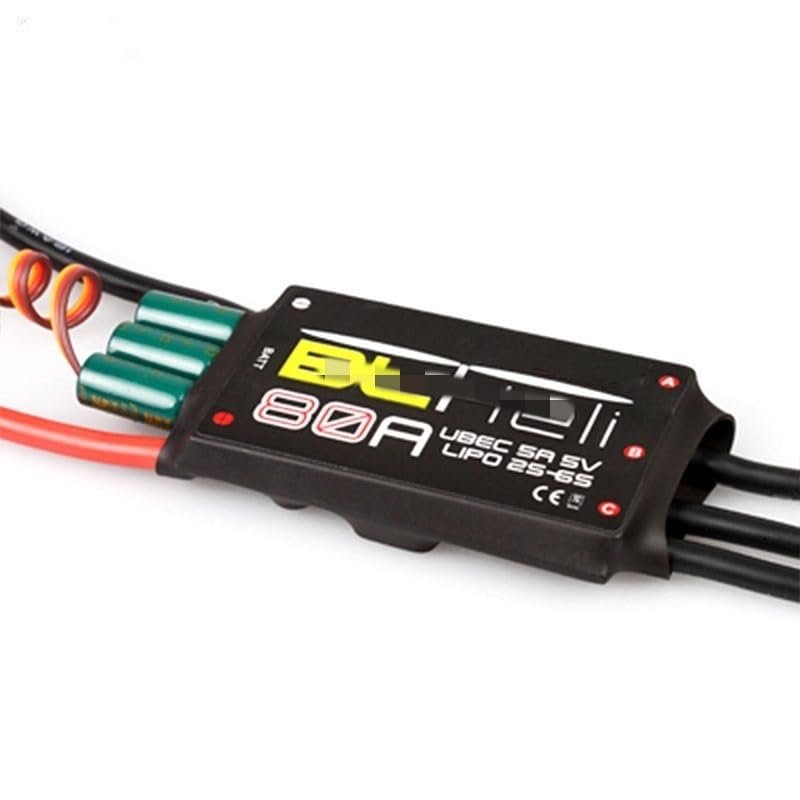

INLIMA for BLHeli Series 12A / 20A / 30A / 40A / 50A / 60A / 80A Electronic Speed Controller ESC for RC Airplane Brushless Drones Parts Drone Accessories (Color : BL 80A)

Description

• Based on firmware for BLHeli, further optimized for perfect drive performance.
• Low voltage protection, overheating protection and throttle signal loss protection.
• Separate power supply for MCU and BEC, enhancing the ESC's ability to eliminate magnetic interference.
• The ESC parameters can be configured via the program card or the transmitter.
• Throttle range can be configured to be compatible with different receivers. Equipped with integrated linear BEC or BEC switch.

Description:
Item name: For BLHeli Series ESC
Continuous current: 12A
Burst current: 15A
Lixx Battery: 2-4S
Dimensions: 42 * 20 * 8mm
BEC output: 1A/5V
Weight: 11g

Continuous current: 20A
Burst current: 25A
Lixx Battery: 2 ~ 4S
Dimensions:52 *26 * 7mm
BEC output: 2A/5V
Weight: 28g

Continuous current: 30A
Burst current:30A
Lixx Battery: 2 ~ 4S
Dimensions: 52 *26 * 7mm
BEC output: 2A/5V
Weight: 28g

Continuous current: 40A
Burst current: 50A
Lixx Battery: 2-6S
Dimensions: 73 * 28 * 12mm
BEC output: 3A 5V
Weight: 41g

Continuous Current: 50A
Breaking current: 60A
Lixx Battery: 2-6S
Dimensions: 73 * 28 * 12mm
BEC output: 3A 5V
Weight: 51g

Continuous Current: 60A
Burst current: 80A
Lixx Battery: 2-6S
Dimensions: 73 * 28 * 12mm
BEC output: 3A 5V
Weight: 63g

Continuous current: 80A
Breaking current: 100A
Lixx Battery: 2-6S
Dimensions: 86 * 38 * 12mm
BEC output: 3A 5V
Weight: 81g
