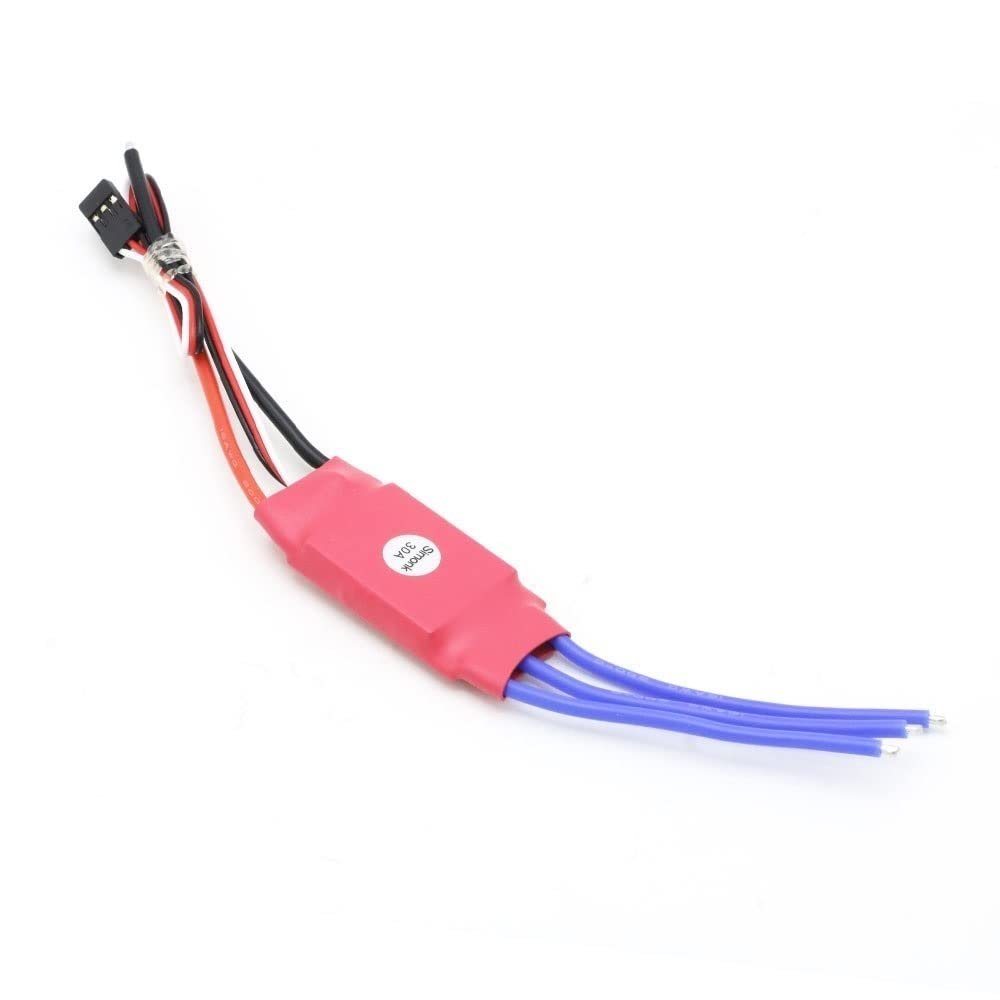

KEYESMINER Drone Accessories for 10A 12A 15A 20A 30A 40A 50A 70A 80A Firmware Electronic Speed Controller ESC for RC Multicopter Helicopter Replaceable ( Color : SimonK 10A )

Description

• 100% Brand new and high quality.
• Repair parts, used for accidental damage replacement, making repairs more worry-free,
• For 10A 12A 15A 20A 30A 40A 50A 70A 80A Firmware Electronic Speed Controller ESC for RC Multicopter Helicopter
• Easy and convenient to install and remove off.
• The electronic performance is stable, and the circuit is not easy to be disturbed.

This hardware, with the firmware, gives you the perfect solution for multirotor use:
simonk10A (2-3S):
Weight: 10 g
Size: 23.5x15x 6.1
Input voltage: (2-3 s Lixx).
Drive current: 10A (Max: 13 A/10S)
BEC Input :3V1A
Compatible signal frequency:30Hz - 499Hz
Simonk12A ( 2-3S ):
Weight:12g
Size:28*20*6.1
Input voltage:2-3S Lixx
Drive current:12A (Max:14A/10S)
BEC Input:5V2A
Compatible signal frequency: 30Hz - 499Hz
simonk15A (2-3S):
Weight:15g
Size:50*22*8
Input voltage:2-3S Lixx
Drive current:15A (Max:25A/10S)
BEC Input:5V2A
Compatible signal frequency: 30Hz - 499Hz
simonk20A (2-3S):
Cont Current: 20A
Burst Current: 28A
BEC Model: Linear mode
BEC Output: 5V3A
Li-ion/Li0poly:2-3S,or Ni-MH/Ni-Cd:4-12NIMH
Weight: 21g
Size: 32*24*7mm
simonk30A(2-4S):
Max cont. current: 30A
Peak current: 40A (10s)
Voltage: 2-3S lixx,
BEC: 5V/3A
Size: 50x23x8mm
Weight: ~28g
simonk30A-OPTO (2-6S)
(the ESC need the power from receiver or the flight control)
Weight:25g
Size:50*23*8
Input voltage: (3-6S Lixx)
Drive current:30A (Max:40A/10S)
BEC Input : NO
Compatible signal frequency: 30Hz - 500Hz
simonk40A(2-4S):
Weight:35g
Size:68*25*8MM
Input voltage:2-4S
Drive current:40A (Max:50A/10S)
BEC Input: 5V 3A
Compatible signal frequency: 30Hz - 500Hz
simonk50A-OPTO (2-6S)
(the ESC need the power from receiver or the flight control)
Weight:48g
Size:53*32*10
Input voltage: (2-6S Lixx)
Drive current:50A (Max:60A/10S)
BEC Input : NO
Compatible signal frequency: 30Hz - 500Hz
simonk70A-OPTO (2-6S)
(the ESC need the power from receiver or the flight control)
Weight:70G
Size:78*38*15MM
Input voltage: (2-6S Lixx)
Drive current:70A (Max:85A/10S)
BEC Input : NO
Compatible signal frequency: 30Hz - 500Hz
simonk80A-OPTO (2-6S)
(the ESC need
