Lybunair 45A 4 in 1 ESC Electronic Speed Controller - Double Hole Spacing for FPV RC Drone

Description

• Advanced Control Chip: The ESC features a performance-driven EMF8BB21F16G main control chip with a swift operating frequency of 48MHz, ensuring rapid and reliable responses. The high-quality 3-in-1 IC driver is supported by a superior PCB design, which includes metalized edge cladding on the pads to prevent detachment during use, while the robust six-layer construction with 3 ounces of copper thickness effectively minimizes heat for enhanced efficiency
• Integrated Design: This ESC boasts an integrated quadrant of 45A high-performance controllers within a compact size equal to general traversing machines, simplifying installation and wiring. Designed specifically for racing drones, its double hole spacing affords a harmonious fit within the sleek drone framework
• Versatile Firmware Loaded with BLHeli-S firmware, the ESC provides a robust performance and versatile functions, offering multiple means of setting the parameters or upgrading the firmware. It supports configuration via the throttle signal cable, various development boards, and settings or upgrades through cleanflight or Betaflight firmware
• Smooth Throttle: The ESC uses a PWM hardware to drive the motor, ensuring low noise and smooth throttle response. Damped Light technology, coupled with regenerative braking, allows for sensitive deceleration and refined control, while Active continuation technology assists in power recovery to extend flight times
• Responsive Connectivity: Employing cutting-edge digital throttle modes such as dshot 150, 300, 600, in addition to the standard PWM, Oneshot125, Oneshot42, and Multshot signals, the ESC guarantees minimal interference and nimble response. High-temperature resilient silicone wires for input and output facilitate enduring connections and effortless soldering

The ESC combines a high-speed, top-grade EMF8BB21F16G control chip with a streamlined integration of four 45A controllers, optimizing space and simplifying installation in racing drones. It boasts versatile BLHeli-S firmware that enhances performance with customizable settings and firmware upgrades, along with a PWM-driven motor for quieter, smoother control and efficient power recovery. Moreover, the ESC supports a wide range of throttle signals, including advanced digital protocols for rapid response and dependable connectivity.

Item Type: 4 in 1 45A ESC
Weight: Approx.46g / 1.6oz
Material: Electronic Components
Color: Black
ESC Size: Approx.44 x 43mm / 1.73 x 1.69in
Fixed Hole: Approx.20 x 20mm / 0.8 x 0.8in, Approx.30.5 x 30.5mm / 1.2 x 1.2in
Fixed Aperture: M4
Maximum Continuous Operating Current: 45A
Maximum Instantaneous Current: 50A
Support: DSHOT150, 300, 600, PWM, Oneshot125, Oneshot42 And Multshot
Software: BLHeliSuite
Firmware Version: BL16.7
Application: Fit For Unmanned RC Drone And For FPV Traversing Machine, Etc

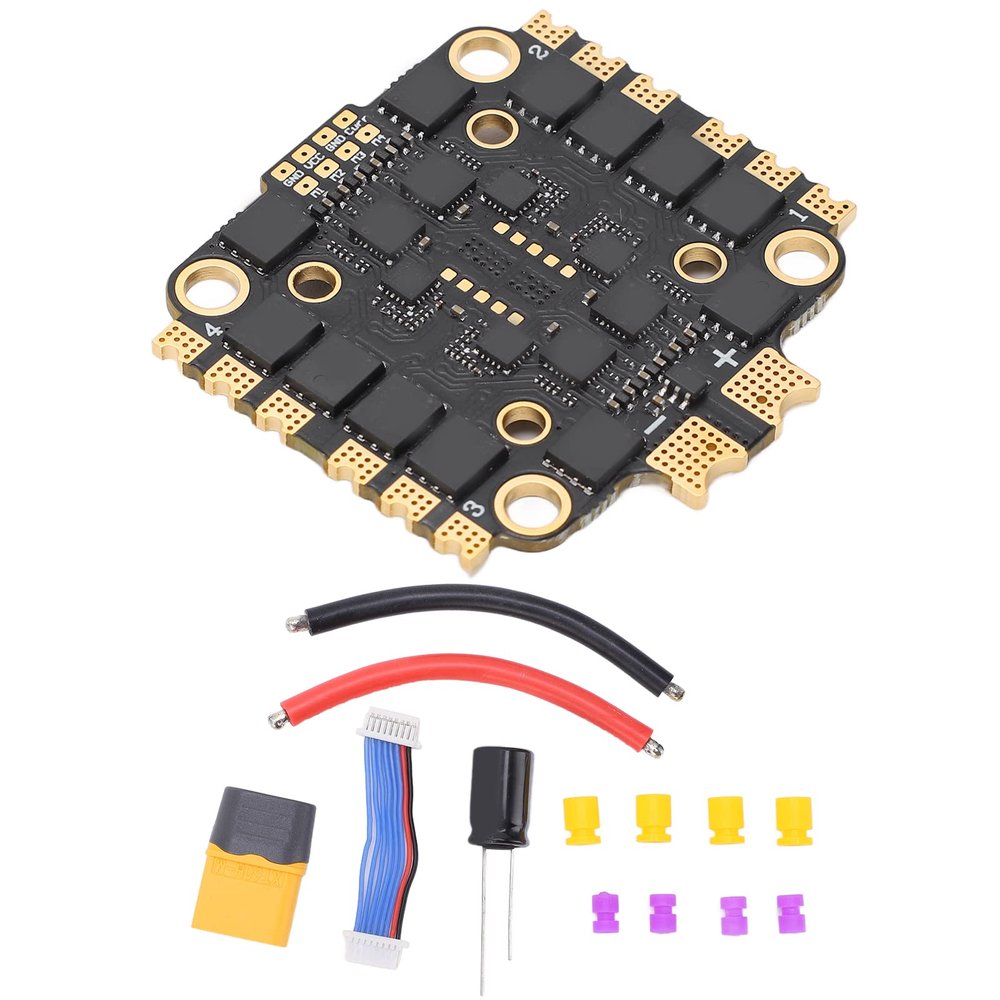

Package List
1 x ESC
3 x Wiring
1 x Capacitance
1 x Plug
8 x Rubber Mat
1 x Wiring Diagram
