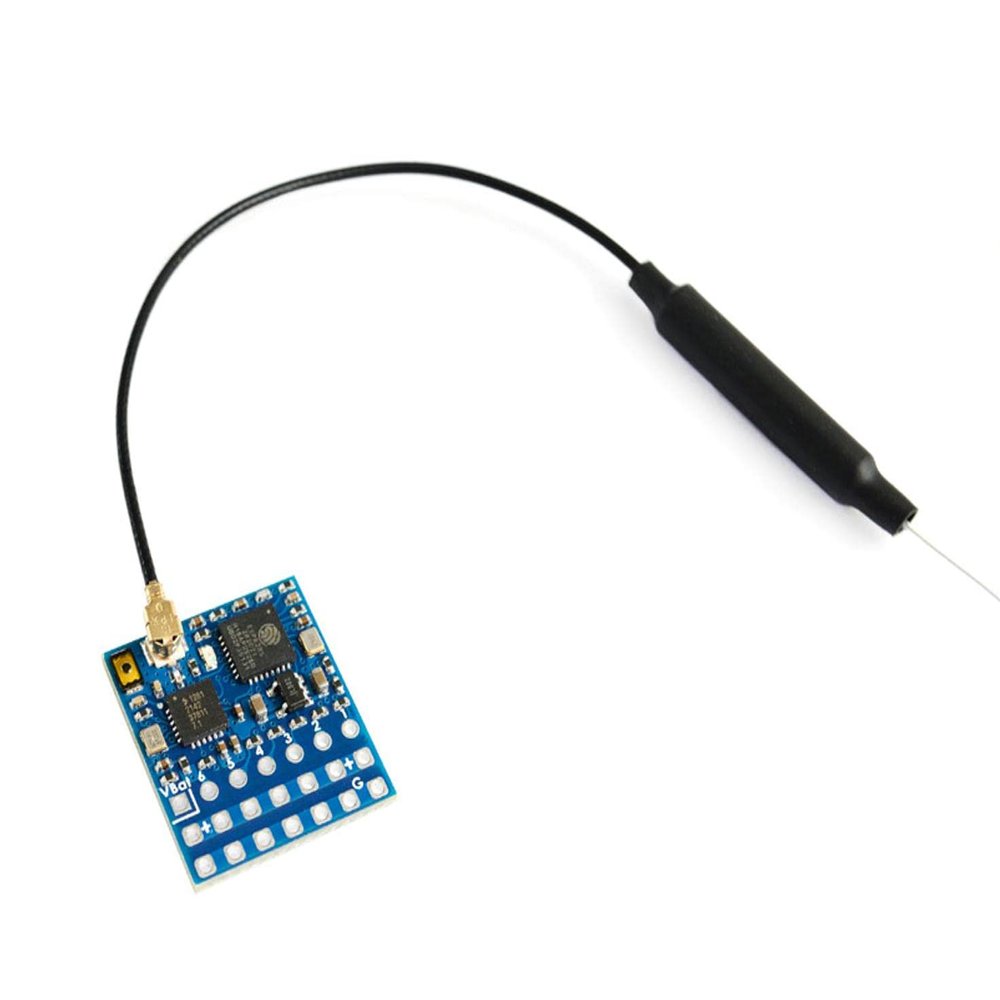

Matek ExpressLRS 2.4G PWM ELRS-R24-P6 ELRS receiver for Carbon Fiber FPV Racing Drone Quad Quadcopter Frame

Description

• ESP8285, SX1281, Antenna connector: IPEX MHF 1
• 6x PWM outputs, Support 2~8S VBat voltage sense
• Receiver output protocol: PWM, Input voltage: 4~9V DC @ + pad, Voltage sense: 34V Max. @ VBat pad
• PCB size: 20mm x 18mm, Weight: 2g w/ antenna
• Package Includes: 1x ELRS-R24-P6 receiver, 1x IPEX MHF1 15cm Antenna, Dupont 2.54 pins (Board is shipped unsoldered)

ESP8285, SX1281
Antenna connector: IPEX MHF 1
6x PWM outputs
Support 2~8S VBat voltage sense
Telemetry power: 12dbm
Receiver output protocol: PWM
Input voltage: 4~9V DC @ + pad
Voltage sense: 34V Max. @ VBat pad
Power dissipation: 45mA(binding), 85mA(wifi mode)
PCB size: 20mm x 18mm
Weight: 2g w/ antenna

Firmwares
ExpressLRS 3.0 or newer, DIY 2.4 G / DIY 2400 RX PWMP EX
Make sure Receiver and TX module both are running ExpressLRS 3.0 or newer
This Receiver has ExpressLRS 3.0 preloaded with binding phrase 123456, it will never enter binding mode if using the traditional binding procedure. You need to reflash it with your binding phrase OR go into WebUI to set your binding process

Flash via Wifi

Disconnect ESC and servos from receiver first.
Power on receiver by 5V source. Receivers LED(Red) will blink slow at first, and after 20s, it should blink fast indicating its on Wifi Hotspot Mode.
Target: DIY 2.4 G / DIY 2400 RX PWMP EX

Flash via UART

Disconnect ESC and servos from receiver first.
Wire the receiver into the USB-TTL adapter, with TX on receiver connected to the Rx on the USB-TTL, and RX on receiver connected to the Tx of the USB-TTL. Wire 5V and GND of the USB-TTL to 5V and GND of the Receiver.
Press the boot button while powering on the receiver, then release the Red LED on receiver should now be solid.
Select the target DIY 2.4 G / DIY 2400 RX PWMP EX and UART for Flashing Method, set your bind phrase and Firmware Options and once done, click on Build and Flash.
