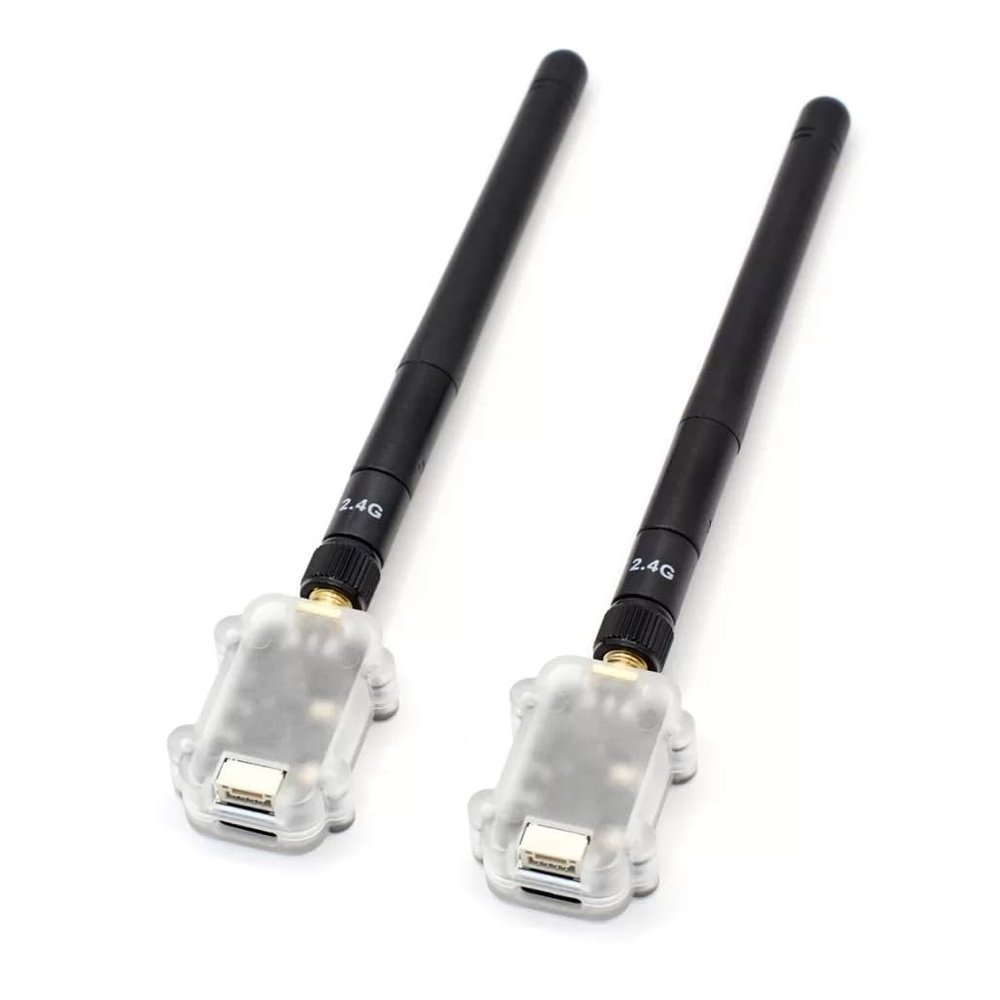

Micoair 2.4G Long-Range LoRa Telemetry for Drones and Robotics/ LR24-F/Data Transmit Module for Pixhawk/Ardupilot/PX4/INAV

Description

• Compatible with Mainstream Open-Source Flight Controllers Built on LoRa spread spectrum technology with 500mW high-power transmission, this telemetry radio is fully compatible with Ardupilot, PX4, iNav and other popular flight control systems, making it ideal for a wide range of drone and UAV applications.
• Exceptional Anti-Interference & Long-Range Transmission Operating in the 2.4GHz ISM band with advanced FHSS (Frequency Hopping Spread Spectrum) technology and 500mW output power, this drone telemetry system delivers a reliable data link with ranges of 1030 km (depending on environment and antenna setup).
• Plug & Play with Auto-Connect No complex setup required. The telemetry module automatically connects on power-up and works seamlessly with PC and Android ground station software, including Mission Planner and QGroundControl, for a smooth user experience.
• Flexible Transparent Transmission & Adjustable Speeds Supports UART transparent transmission and multiple data protocols (not limited to MAVLink). Offers symmetrical uplink/downlink with adjustable data rates (2.4K20K Byte/s), meeting diverse application needs for drone communication.
• Compact, Lightweight & Solder-Free Integration Weighing only 8g with a compact 43.425.811mm form factor, this telemetry radio includes a Type-C interface and multiple data cables for direct plug-in connection to Pixhawk 16 and Micoair flight controllersno soldering required.

Overview

The LR24-F Telemetry Radio is a small, affordable radio with superior performance for flight controllers, typically achieving ranges of more than 10 kilometers. It is very suitable for Pixhawk or other Ardupilot/PX4 flight controllers. It will connect automatically when powered up without any configuration, unless you need to enable special features.
The LR24-F works in the 2.4GHz band, so it is better to use a 915M receiver (BlackSheep/ELRS 915) than any other 2.4G receiver on your drones.

Manual

LR24-F - 2.4GHz LoRa Telemetry

Tutorial
Setup Tutorial Of Telemetry Radio On Ardupilot Setup Tutorial Of Telemetry Radio On PX4

Features
Work in 2.4GHz ISM bands Small size and light weight (8g) Transmit power up to 27dBm (500mW) Based on LoRa modulation technology to obtain excellent anti-interference performance Frequency hopping spread spectrum (FHSS) Transparent transmission compatible with any data and protocol (not just MAVLink) CP2102 USB to UART IC, compatible with QGroundControl on Android

Data Transmission
Transmission Rate: 2.4K Byte/s (default); 4K Byte/s; 8K Byte/s; 20K Byte/s Maximum Single-package Length: 20K Byte UART Baudrate for JST-GH Interface: 9600; 19200; 38400; 57600 (default); 115200; 230400; 460800; 500000; 921600 UART Baudrate for USB Interface: 57600 (default); 115200; 921600

Physical
Dimensions: 43.4 x 25.8 x 11mm (without antenna) Weight: 8g

Electrical
Supply Voltage: 5V DC (from USB or JST-GH) Average Transmit Current: 400 mA at 27dBm Serial Interface: 3.3V UART JST-GH1.25-4P USB Interface: USB-Type-C (CP2102) Antenna Interface: SMA (Female)

Package Lists
LR24-F Radio Telemetry * 2 2.4G 3dBi antenna (11cm) * 2 20cm GH1.25-4P to GH1.25-6P Cable (For Pixhawk4/5/6) * 1 20cm GH1.25-4P to MX1.25-6P Cable (For Pixhawk1/2) * 1
