RadioMaster Ranger 2.4GHz ELRS Module for Radiomaster TX16S MKII TX12 MKII (Ranger)

Description

• The RadioMaster Ranger is the pinnacle of ExpressLRS module design. Built not only to look great but to last with its rugged CNC machined aluminum case that aids the high-efficiencty cooling system as a heat sink. The Ranger is up to any task and provides all the power and functionality you need.
• Featuring an OLED display, directional menu key and two assignable shortcut keys the Ranger can be adjusted on the fly and personalized to your needs.
• The Ranger includes a T Antenna for general use and a RadioMaster Moxon antenna for long-range directional applications. A micro module and nano module adapter are included to ensure the Ranger is compatible with most radios on the market today. A cable has also been included for use with Futaba radios that are CRSF capable.
• If you need receivers ,choose the Ranger Combo, which includes the following items: 2 * RP1 ExpressLRS 2.4ghz Nano Receiver; 1 * RP2 ExpressLRS 2.4ghz Nano Receiver.

Features
Rugged CNC Case
High efficiency cooling system
OLED Display
Wifi and Bluetooth support
Built in Accelerometer
Packet rates up to F-1000Hz
5 Direction Nav key and customizable short cut buttons
Up to 1 Watt Power output
Specification
Item: Ranger Module
Regulatory Domain: ISM2400
MCU: ESP32(main), ESP8285(aux,as ESP backpack)
RF chip: SX1281IMLTRT
Frequency Range: 2400 MHz - 2480 MHz
Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
Minimum receiver refresh rate: 25Hz
RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
Module bay adapters: JR standard 5pin socket & Nano standard 8pin socket
Futaba CRSF socket cable: Included
OLED screen: 64x128px
Wifi Support: Yes
Bluetooth support: Yes
3 Axis Accelerometer: Yes (STK8BA58 MEMS Accelerometer)
Built in RGB light strip
XT30 Power supply voltage: DC 6V - 16.8V
Weight: 138g (with Moxon antenna) / 135g (with T antenna) / 126g (without antenna)
Dimension: 178*51*25mm (with Moxon antenna) / 95*51*25mm (without antenna)

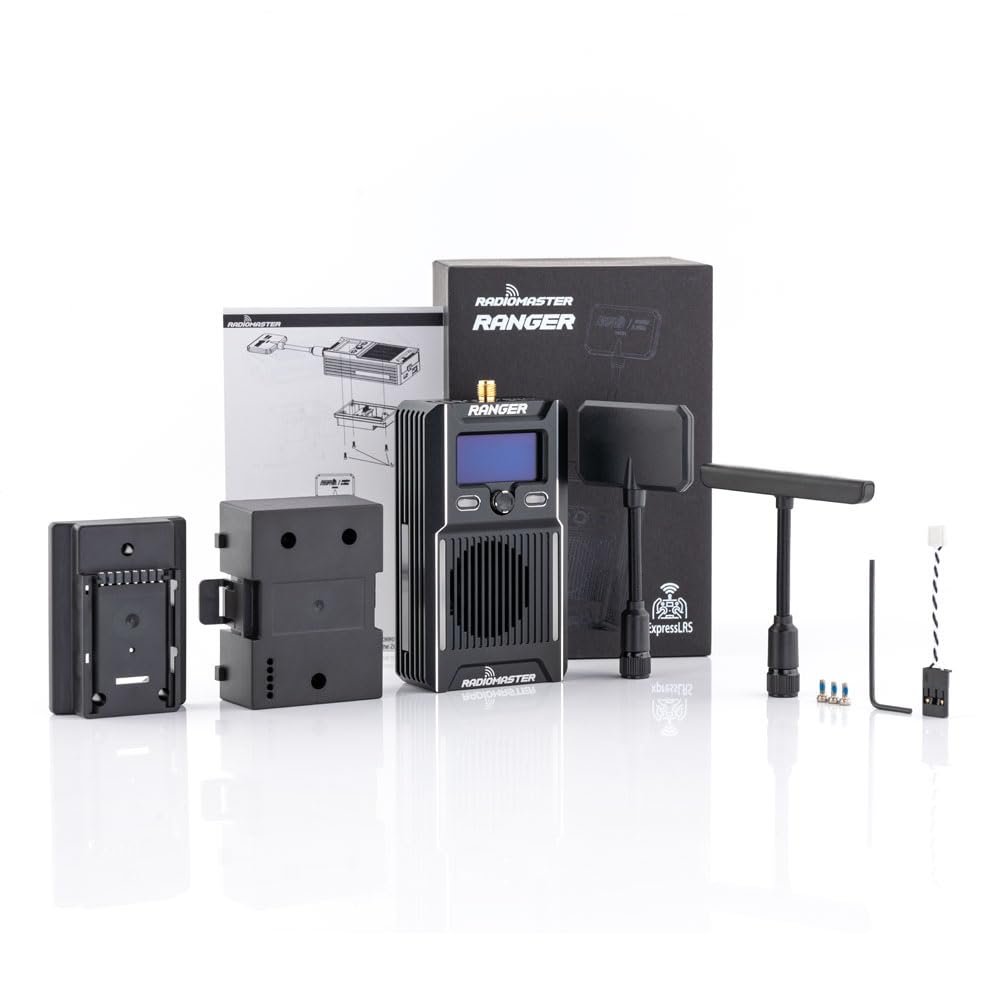

Package
1 * RANGER Module
1 * Futaba CRSF socket cable
1 * JR Adapter
1 * Nano Adapter
1 * T Antenna
1 * Moxon Antenna
1 * Hexagon socket screwdriver
3 * M2*5 Screws
1 * Assembly Manual
Need receivers too? Choose the Ranger Combo, which includes the following items:
2 * RP1 ExpressLRS 2.4ghz Nano Receiver
1 * RP2 ExpressLRS 2.4ghz Nano Receiver
