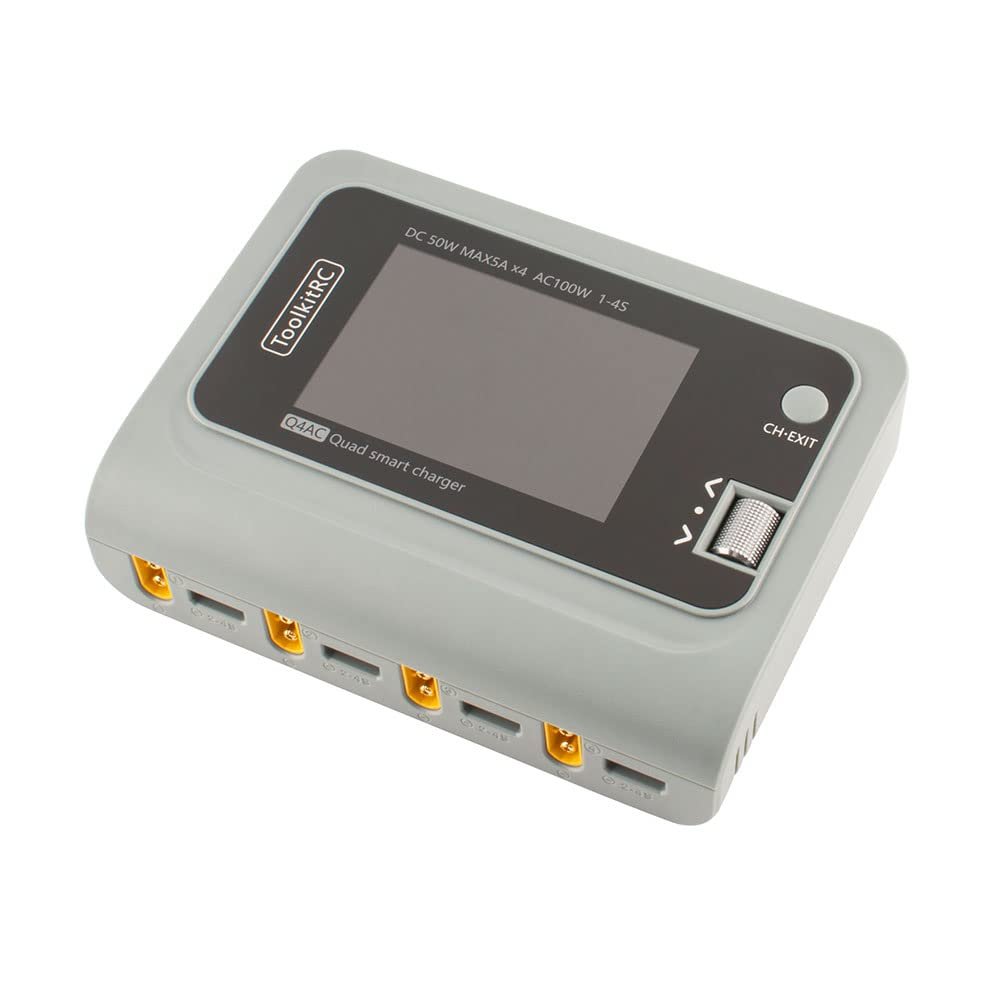

ToolkitRC Q4AC 4 x 50W 5A 1-4S Lipo AC 100W DC Smart Lithium Battery Balance Charger US Plug 4 Port DC Smart Discharger

Description

• Q4AC is a four-channel balanced charger product with IPS highlight display and scroll wheel encoder for more convenient operation.
• It can charge and discharge and balance management of LiPo, LiHV, LiFe Lion 1-4S, NiMh 1-10S, PB 1-8S batteries.
• The device is simulated as a U disk, and the upgrade file is copied to realize the product firmware upgrade.
• AC, DC two power supply modes, AC 100-240V maximum 100W, DC 10-18V maximum 200W.
• It can record 3 groups of commonly used power sources, which is convenient for quick selection and translation.

Safety Precautions:
1. Q4AC allows input voltage AC 100V-240V, DC 10-18V, ensure that the power supply voltage is consistent, and pay attention to the positive and negative polarity of the power supply when connecting.
2. Do not use this product in the environment of heat source, humidity, flammable and explosive gas.
3. Please use this product under the condition of being guarded to prevent accidents.
4. When the product is not in use, please unplug the input power in time.
5. When using the charging function, please set the current that matches the battery, and do not set too high current for charging, so as not to damage the battery.

Specification:
Item type: RC Charger
Material: Plastic + PCB
Charge:
Input voltage: AC100-240V@MAX1.5A
DC10-18V@MAX20A
Battery type: LiPo LiHV LiFe Lion@1-4S NiMh @1-10S Pb @1-8S
Balance current: 240mA @2-4S
Balance accuracy: <0.005V
Charging power:
0.1-5A@50W*4 DC input
0.1-5A@50W*2 AC input
0.1-5A@25W*4 AC input
Discharge power: 0.1-2A@5W*4
USB: Firmware Upgrade@USB
Battery voltage: 1.0V-5.0V @1-4S
Battery internal resistance: 1-100mR @1-4S
Display: LCD IPS 3.5 inch 480*320 resolution
Product size: 150x112x36.5mm/5.91x4.41x1.44in
Weight: 450g
Complete package size: 160x160x46mm/6.3x6.3x1.81in
Package weight: 600g
Plug type: US plug,
