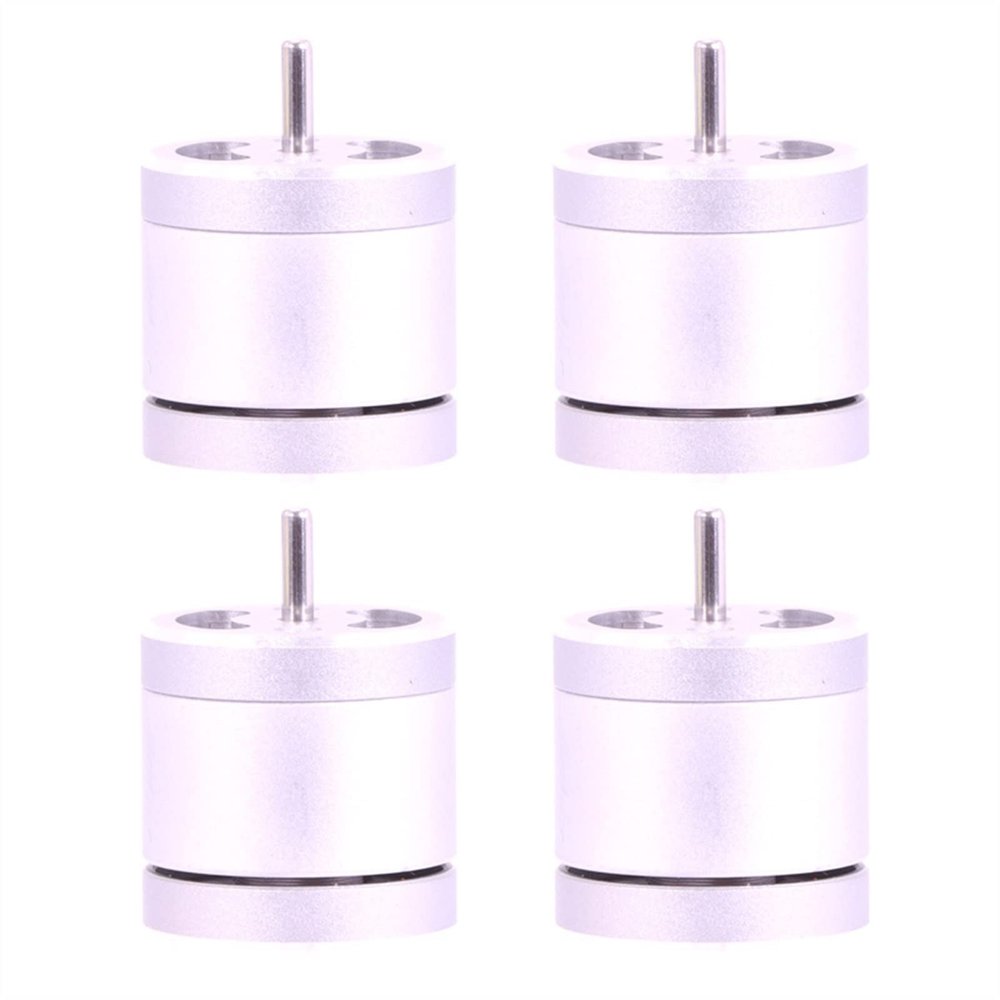

ZHIPAIJI 1106 4200KV Brushless Motor 1-4S 3/4/5inch FPV Racing RC Drone DIY for Gemfan 3018 4024 Propeller for HQ 3020 3030 4025 Prop (Color : 4 PCS-1106 4200KV)

Description

• Motor KV: 4200KV.Weight: 7.8g
• Stator Diameter: 14.5mm
• Stator Thickness: 3.5mm
• Mounting holes distance: 9*9mmM2

This product is for Wingsland S6 Accessory,Brushless motor can also be used in other RC ModelFor example: small fixed wing aircraft model.
Item Name: 1106 4200KV 1-4S Brushless Motor
Motor KV: 4200KV
Weight: 7.8g
Stator Diameter: 14.5mm
Stator Thickness: 3.5mm
Shaft Diameter: 1.5mm
Output shaft length:5MM
Propeller fixed hole spacing8.5MMM2
Mounting holes distance: 9*9mmM2
Motor cable length80MM
No. of Stator Arms: 9S
No. of Rotor poles: 12P
Bearing:for NSK
N52 Strong Magnet
Input Voltage: 1-4S Lipo(Choose the right battery according to the use situation)
Recommended Propeller: 3/4/5Inch
The propeller can choose for Gemfan 3018 4024 HQ 3020 3030 4025
The specific modification needs to be studied by yourself.
The motor should be more suitable for 1-4S lithium battery.
It mainly depends on matching the size of the blades.
*The motor is equipped with fixing screws, but does not contain the fixing screws of the propeller, please be aware.
*Please pay attention to the installation of the fixing screws of the motor. If you touch the copper wire of the rotor, the motor will be damaged.

Packiage Included:
1/4 pcs x 1106 4200KV Motor
Does not include drones and other things in the picture
